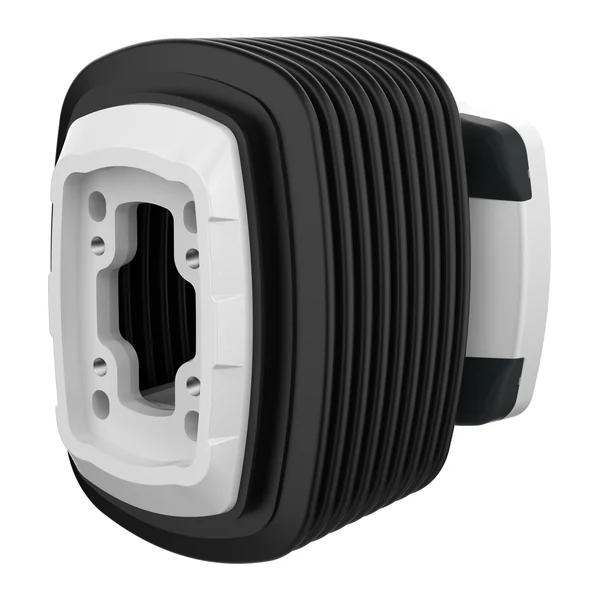

TK060.705 — Support arm system module TK060: wall module, straight base with bellows — Teknokol
Produttore: Teknokol · Codice: TK060.705
252,05 € IVA inclusa / pz210,04 € IVA esclusa
Disponibile
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Descrizione del prodotto
Wall bracket with steel casting and bellows — Teknokol TK060.
- Secures the horizontal arm to a wall or vertical surface; steel body and bellows.
- Weight: 4.04 kg, Dimensions: 124 × 154 × 136 mm (W × H × D), Rotation: ±90°.
- Designed for medium configurations
Dati tecnici
| Tipo | Cerniera |
|---|---|
| Sistema | TK060 |
| Esecuzione | girevole |
| Materiale | fusione d'acciaio |
| Colore | RAL 7035 / RAL 7016 |
| Peso, kg | 4,04 |
| Dimensioni, mm | 124 × 154 × 136 |
| Rotazione | ±90° |
| Grado di protezione | IP65 |
| Carico statico del sistema | 1100 N (schema 1) / 1000 N (schema 2) fino a 1000 mm; braccio fino a 3000 mm |
| Codice doganale (NC/TARIC) | 8302 49 00 (8302490099) |
| Dazio all'importazione da paesi terzi | 2,7 % |
