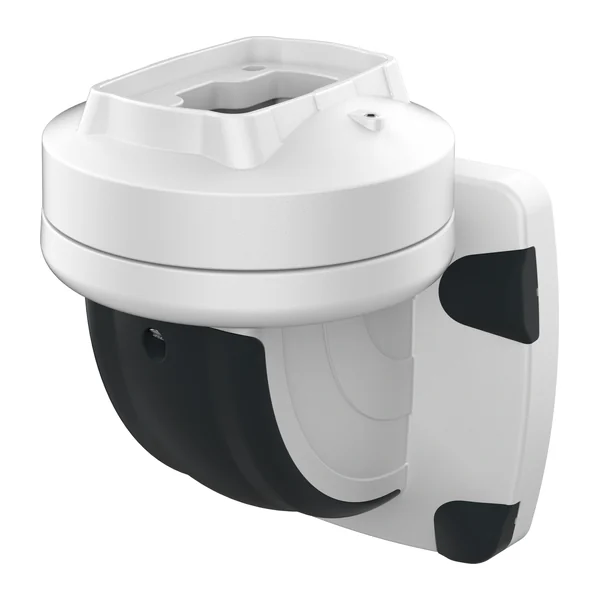

TK120.710 — Support arm system module TK120: rotating base S-shaped, wall mounting, vertical outlet, rotation angle 315° (± 150°) — Teknokol
Produttore: Teknokol · Codice: TK120.710
319,78 € IVA inclusa / pz266,48 € IVA esclusa
Disponibile
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Descrizione del prodotto
Rotating wall mount, vertical outlet — Teknokol TK120.
- Wall bracket for mounting on a wall or machine; the arm extends vertically.
- Weight 7.065 kg, dimensions 195 x 248 x 192 mm (W x H x D), rotation 310°.
- Designed for demanding configurations
Dati tecnici
| Tipo | Cerniera |
|---|---|
| Sistema | TK120 |
| Esecuzione | girevole |
| Materiale | alluminio |
| Colore | RAL 7035 / RAL 7016 |
| Peso, kg | 7,065 |
| Dimensioni, mm | 195 × 248 × 192 |
| Rotazione | 310° |
| Grado di protezione | IP65 |
| Carico statico del sistema | 1800 N (schema 1) / 1500 N (schema 2) fino a 1000 mm; braccio fino a 3000 mm |
| Codice doganale (NC/TARIC) | 8302 49 00 (8302490099) |
| Dazio all'importazione da paesi terzi | 2,7 % |
