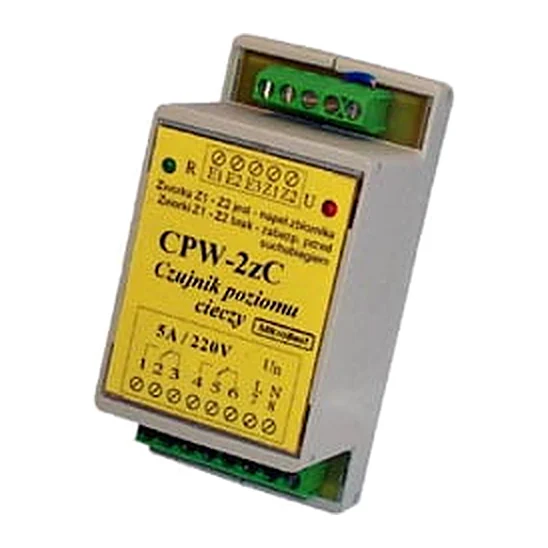

CPW-2ZC — Level control relay MikroBest, conductive liquids
Gamintojas: MikroBest · Kodas: CPW-2ZC
57,61 € su PVM / vnt.48,01 € be PVM
Yra sandėlyje
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produkto aprašymas
CPW-2ZC – Relay for level control of conductive liquids (electronic level sensor) · Power supply: 230 V AC, 50 Hz, max. 3 VA · Output: 2 switching contacts (2 CO), 8 A / 250 V AC1 or 8 A / 24 V DC1 · Functions: tank filling, tank emptying, dry run protection · Sensitivity is preset by the manufacturer for water (lower conductivity limit: 1 µS) · Maximum electrode current: 40 µA · LEDs for power and relay status · IP40 rating · Mounting on 35 mm DIN rail · Compatible with EL, CZP, SK-35 probes (ordered separately)
Techniniai duomenys
| Rūšis | Lygio kontrolės relė |
|---|---|
| Serija | CPW |
| Montavimas | DIN bėgelis 35 mm |
