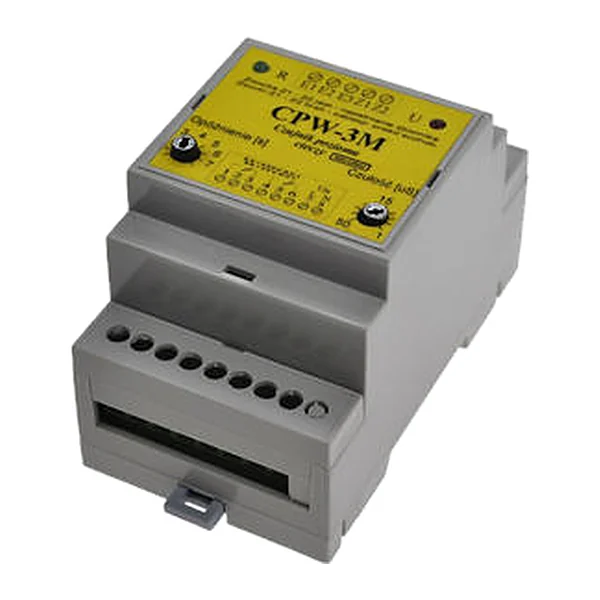

CPW-3M — Level control relay MikroBest, conductive liquids, output 8 A

Produkto aprašymas

CPW-3M – Relay for level control of conductive liquids (electronic level sensor) · Power supply: 230 V AC, 50 Hz, max. 3 VA · Output: 2 switching contacts (2 CO), 8 A / 250 V AC1 or 8 A / 24 V DC1 · Adjustable sensitivity: 20–1000 kΩ (50–1 µS) and adjustable delay: 0.5–8 s · Functions: tank filling, tank emptying, dry run protection · Electrode circuits are galvanically isolated from the power supply and powered by 12 V DC · LEDs for power and relay status · IP40 rating · Mounting on 35 mm DIN rail · Compatible with EL, CZP, SK-35 probes (ordered separately)

Techniniai duomenys
