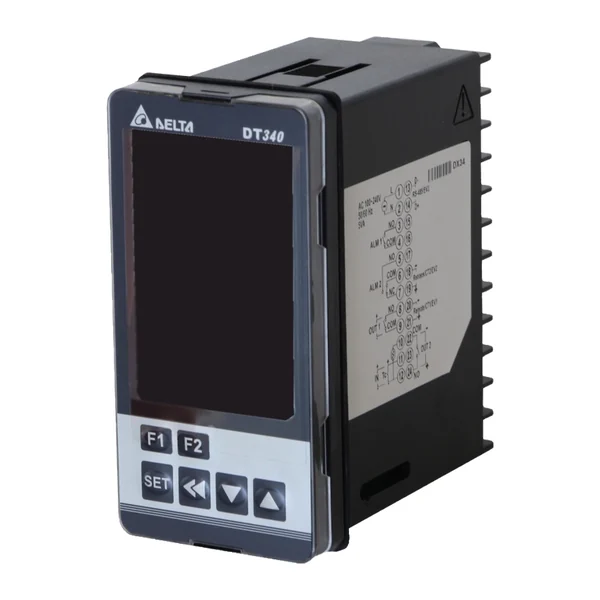

DT340VA — Intelligent temperature controller Delta DT3 series, 48 × 96 mm (1/8 DIN)
Fabrikant: Delta Electronics · Code: DT340VA
€ 111,70 incl. btw / st.€ 93,08 excl. btw
Levering op aanvraag — de levertijd wordt in de offerte bevestigd.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Productbeschrijving
Delta series DT3 intelligent temperature controller, 48 × 96 mm (1/8 DIN).
* Output 1: Pulse voltage for SSR, 12 VDC (-10 ~ +20 %), 2 alarm relay outputs (250 VAC, 3 A).
* Power supply: 100 ~ 240 VAC, 50 / 60 Hz.
* Inputs: Thermocouples K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100; Cu50, Ni120; 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, 0~50 mV.
* Control modes: PID, programmable PID (ramp/soak), fuzzy logic, auto-tuning, ON/OFF, manual.
* Measurement period: 0.1 s.
* Tri-color LCD display.
* User buttons F1 / F2.
* Modular design: Optional modules for output 2, event control, current transformer (CT), remote setpoint, and retransmission.
Technische gegevens
| Serie | DT3 |
|---|---|
| Grootte | 48 × 96 mm (1/8 DIN) |
| Uitgang 1 | Pulsspanning voor SSR, 12 VDC (-10 ~ +20 %) |
| Uitgang 2 | Geen (extra kaart DT3-R / V / C / L) |
| Communicatie | Geen (optie: uitbreidingsmodule DT3-40ECOM) |
| Voeding | 100 ~ 240 VAC, 50 / 60 Hz |
| Aantal alarmuitgangen | 2 |
| Douanetariefcode (GN/TARIC) | 9032 10 20 (9032102090) |
| Invoerrecht uit derde landen | 2,8 % |
