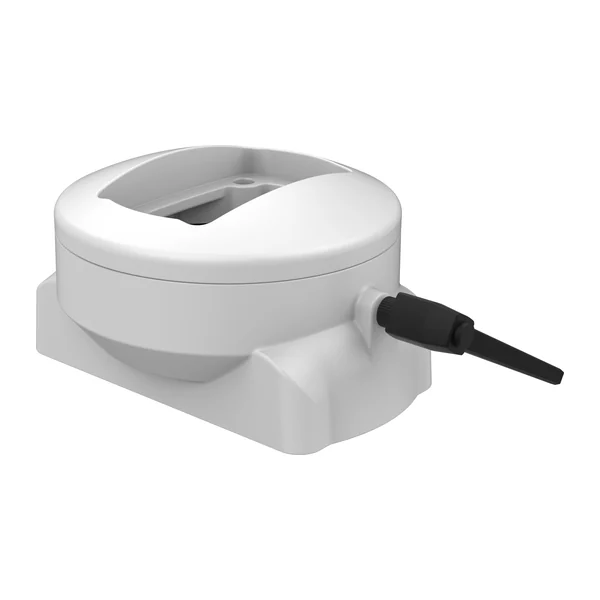

TK045.830 — Rotating adapter to the console, vertical, 118 × 65 mm — Teknokol TK045
Fabricante: Teknokol · Código: TK045.830
137,27 € com IVA / un.114,39 € sem IVA
Disponível
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Descrição do produto
Rotating adapter to the control panel, vertical, 118 × 65 mm — Teknokol TK045.
- Connects the arm to the control panel; connecting surface 118 × 65 mm, the control panel rotates around the axis - for shallow and lightweight enclosures.
- Weight: 0.73 kg, Dimensions: 118 × 62 × 100 mm (W × H × D), Rotation: ±160°.
- According to the compatibility table, it fits ECO 090 and ECO 120 housings (for ECO 060, only with extension +90/+91).
Dados técnicos
| Tipo | Adaptador para a consola |
|---|---|
| Sistema | TK045 |
| Execução | rotativo |
| Material | alumínio |
| Cor | RAL 7035 |
| Peso, kg | 0,73 |
| Dimensões, mm | 118 × 62 × 100 |
| Rotação | ±160° |
| Grau de proteção | IP65 |
| Código pautal (NC/TARIC) | 7616 99 90 (7616999099) |
| Direito aduaneiro na importação de países terceiros | 6 % |
