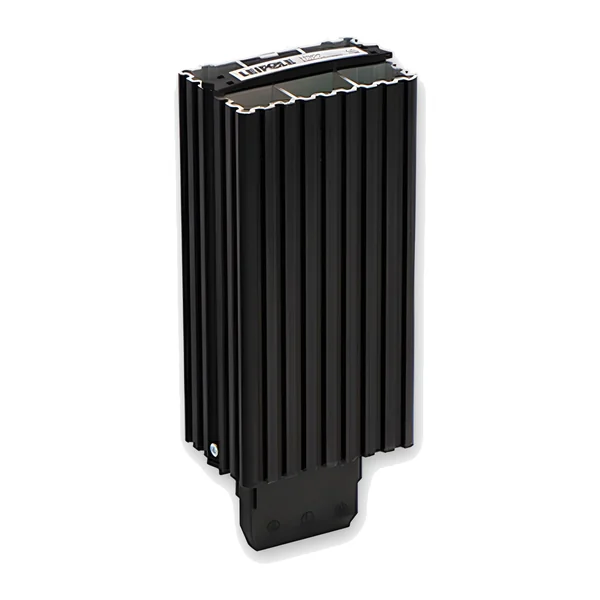

JRQ100 — PTC convection enclosure heater 100–110 W, 230 V AC, DIN rail
Proizvajalec: Leipole · Koda: JRQ100
42,40 € z DDV / kos35,33 € brez DDV
Na zalogi
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Opis izdelka
JRQ100 (2020.006) - PTC convection heater for panel 100–110 W, 230 V AC, DIN rail
Features: 230 V AC, 50/60 Hz; self-limiting PTC element; 100–110 W at 20 °C; maximum inrush current 4.5 A; surface temperature up to 125 °C; operating/storage temperature -45…+70 °C; clip for 35 mm DIN rail; push-in terminal 0.5–2.5 mm², UL94 V-0; overall length 182 mm including the terminal.
Application: Maintains the air in the panel above the dew point to prevent condensation and freezing during cold starts.
Tehnični podatki
| Kataloška številka | 2020.006 |
|---|---|
| Kategorija | Grelniki za stikalne omarice |
| Serija | JRQ |
| Tip | PTC konvekcijski grelnik |
| Napajanje | 230 V AC, 50/60 Hz |
| Moč, W | 100–110 |
| Tok, A | do 4,5 |
| Območje nastavitve | PTC — samoomejevalni |
| Mere, mm | dolžina 182 |
| Montaža | DIN letev 35 mm, navpično |
| Priključitev | sponka push-in 0,5–2,5 mm² |
| Material | aluminij |
| Barva | črno eloksiran |
| Stopnja zaščite | IP20 |
| Razred gorljivosti | UL94 V-0 (sponka) |
| Delovna temperatura, °C | −45 … +70 |
| Standardi in certifikati | CE, RoHS |
| Uporaba | zaščita pred kondenzacijo in zmrzaljo v stikalnih omaricah |
| Tarifna oznaka (KN/TARIC) | 8516 29 50 (8516295000) |
| Carina pri uvozu iz tretjih držav | 2,7 % |
