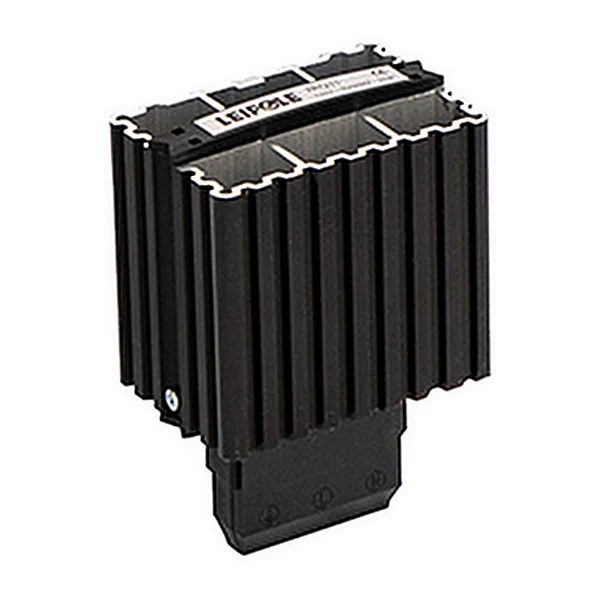

JRQ45 — PTC convection enclosure heater 45–50 W, 230 V AC, DIN rail
Proizvajalec: Leipole · Koda: JRQ45
22,02 € z DDV / kos18,35 € brez DDV
Na zalogi
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Opis izdelka
JRQ45 (2020.003) — PTC convection heater for panel 45–50 W, 230 V AC, DIN rail.
Specifications: 230 V AC, 50/60 Hz; self-limiting PTC element; 45–50 W at 20 °C; max. inrush current 3 A; surface temperature up to 100 °C; operating/storage −45…+70 °C; clip for 35 mm DIN rail; push-in terminal 0.5–2.5 mm², UL94 V-0; total length 107 mm including the terminal.
Application: Maintains the air in the panel above the dew point to prevent condensation and freezing during cold starts.
Tehnični podatki
| Kataloška številka | 2020.003 |
|---|---|
| Kategorija | Grelniki za stikalne omarice |
| Serija | JRQ |
| Tip | PTC konvekcijski grelnik |
| Napajanje | 230 V AC, 50/60 Hz |
| Moč, W | 45–50 |
| Tok, A | do 3 |
| Območje nastavitve | PTC — samoomejevalni |
| Mere, mm | dolžina 107 |
| Montaža | DIN letev 35 mm, navpično |
| Priključitev | sponka push-in 0,5–2,5 mm² |
| Material | aluminij |
| Barva | črno eloksiran |
| Stopnja zaščite | IP20 |
| Razred gorljivosti | UL94 V-0 (sponka) |
| Delovna temperatura, °C | −45 … +70 |
| Standardi in certifikati | CE, RoHS |
| Uporaba | zaščita pred kondenzacijo in zmrzaljo v stikalnih omaricah |
| Tarifna oznaka (KN/TARIC) | 8516 29 50 (8516295000) |
| Carina pri uvozu iz tretjih držav | 2,7 % |
