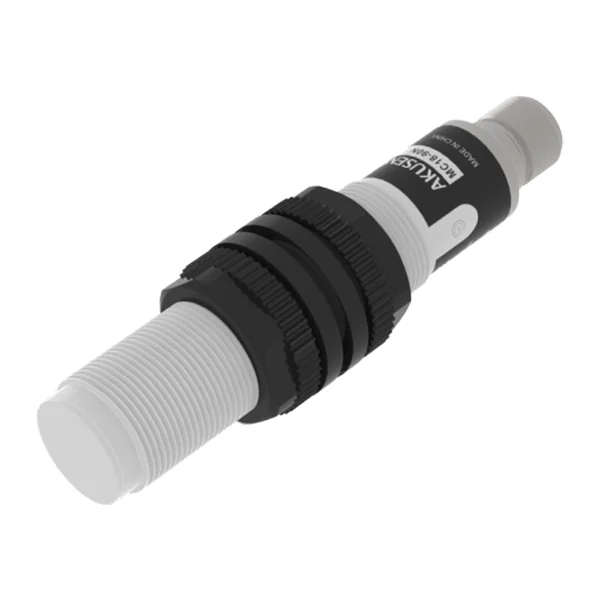

MC18-220I — Ultrasonic sensor M18, 0.2 – 2.2 m, Analog 4–20 mA, M12 connector, 4 pins
Tillverkare: Akusense · Kod: MC18-220I
526,68 € inkl. moms / st438,90 € exkl. moms
Leverans på beställning – leveranstiden bekräftas i offerten.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Tekniska data
| Kategori | Ultraljudssensorer |
|---|---|
| Serie | MC18 |
| Utförande | cylindriska M18 |
| Funktionsprincip | Ultraljud |
| Detekteringsmetod | Diffus |
| Storlek | M18 |
| Mätområde, mm | 2200 |
| Räckvidd | 0,2 – 2,2 m |
| Utgång | Analog 4–20 mA |
| Matning | 15–30 V DC ±5 % |
| Last, mA | 100 |
| Frekvens, Hz | 1 |
| Svarstid | 500 ms |
| Anslutning | Kontakt M12, 4 stift |
| Anslutningstyp | Kontakt M12 |
| Kapslingsklass | IP67 |
| Husmaterial | PBT |
| Skydd | omvänd polaritet, kortslutning, överspänning |
| Drifttemperatur | −20 … +60 °C |
| Min. temperatur, °C | -20 |
| Max. temperatur, °C | 60 |
| Mått | M18 × 91,5 mm |
| Vikt, g | 26 |
| Repeterbarhet | 0,5 % |
| Hysteres | 1 % |
| Ingår | Muttrar |
| Tulltaxenummer (KN/TARIC) | 9031 80 20 (9031802000) |
| Tull vid import från tredjeland | 0 % |
