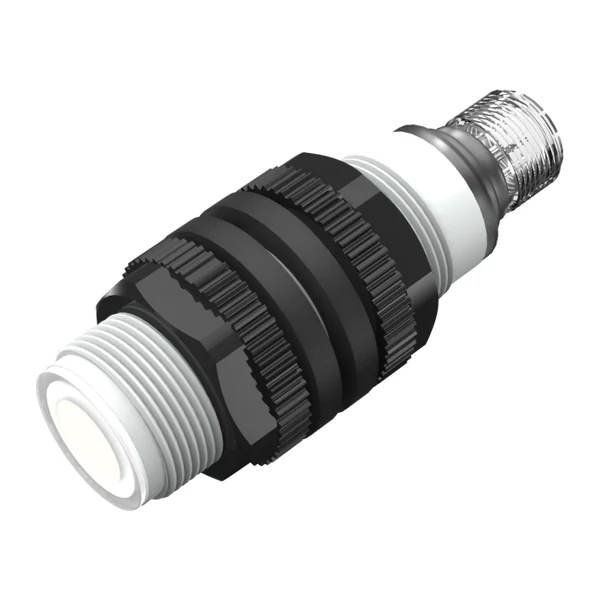

MS18-30N — Ultrasonic sensor M18, 40 – 300 mm, NPN, connector M12, 4 pins
Tillverkare: Akusense · Kod: MS18-30N
300,86 € inkl. moms / st250,72 € exkl. moms
Leverans på beställning – leveranstiden bekräftas i offerten.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Tekniska data
| Kategori | Ultraljudssensorer |
|---|---|
| Serie | MS18 |
| Utförande | cylindriska M18, korta |
| Funktionsprincip | Ultraljud |
| Detekteringsmetod | Diffus |
| Storlek | M18 |
| Mätområde, mm | 300 |
| Räckvidd | 40 – 300 mm |
| Utgång | NPN |
| Matning | 15–30 V DC ±5 % |
| Last, mA | 100 |
| Frekvens, Hz | 8 |
| Svarstid | 12 ms |
| Anslutning | Kontakt M12, 4 stift |
| Anslutningstyp | Kontakt M12 |
| Kapslingsklass | IP67 |
| Husmaterial | PBT |
| Inställning | Extern inlärning (teach-in) |
| Skydd | omvänd polaritet, kortslutning, överspänning |
| Drifttemperatur | −20 … +70 °C |
| Min. temperatur, °C | -20 |
| Max. temperatur, °C | 70 |
| Mått | M18 × 60,4 mm |
| Vikt, g | 15 |
| Repeterbarhet | 2 % |
| Hysteres | 2 % |
| Ingår | Muttrar |
| Tulltaxenummer (KN/TARIC) | 8536 50 19 (8536501900) |
| Tull vid import från tredjeland | 0 % |
