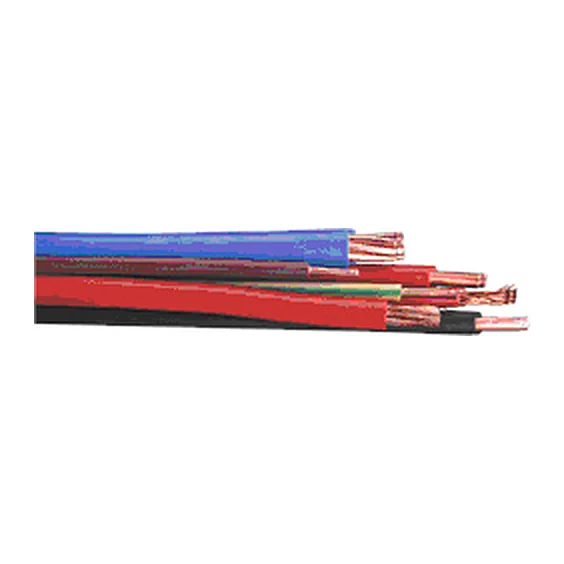

H05V-K 1×0,35 — Инсталационен проводник H05V-K 1×0,35 mm², черен
Code: H05V-K 1×0,35
€0.06 incl. VAT / m€0.05 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Product type | Installation wire |
|---|---|
| Series | H05V-K |
| Number of cores × cross-section | 1×0,35 |
| Cross-section, mm² | 0,35 |
| Number of cores | 1 |
| Core insulation | PVC (type TI1 to EN 50363-3) |
| Core | copper, fine-stranded, class 5 (IEC 60228) |
| Insulation colour | black |
| Rated voltage | U0/U 300/500 V |
| Test voltage | 2000 V |
| Min. bending radius | fixed 4×d |
| Operating temperature | fixed −30…+80 °C; flexing −5…+70 °C |
| Standards and approvals | EN 50525-2-31 (HD 21.3), IEC 60227-3; flame retardance IEC 60332-1-2 |
| Application | internal wiring of equipment and enclosures, protected fixed installation |
| Sold by | by the metre |
| Tariff code (CN/TARIC) | 8544 49 95 (8544499590) |
| Import duty from third countries | 3,7 % |
