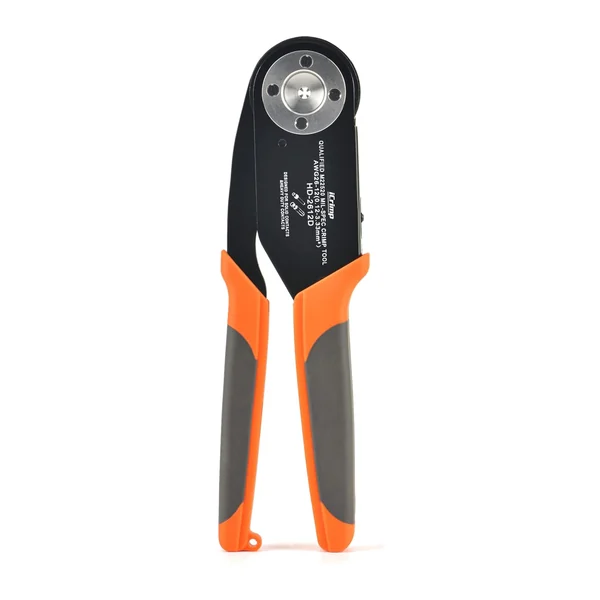

HD-2612D — Crimping pliers for Deutsch contacts IWISS, 0.128–3.33 mm² (AWG 26–12)
Manufacturer: IWISS · Code: HD-2612D
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
HD-2612D - crimping pliers for Deutsch crimp contacts 0.128–3.33 mm² (AWG 26–12), four teeth / eight imprints; equivalent to HDT-48-00.
Features: for pins and sockets: DT series (contact size 16, AWG 20–14), DTM (size 20, AWG 22–16), DTP (size 12, AWG 14–10); also HD30, HDP20, DRC, HD10, DRB; selector for wire gauge and screw for contact height; quick placement stop; ratchet controls the cycle in both directions - crimping is always complete; length 241 mm.
Application: automotive, construction, and agricultural machinery - cable harnesses with Deutsch connectors, as well as Harting connectors for heavy-duty applications.
Technical data
| Product type | crimping pliers for turned contacts |
|---|---|
| Cross-section, mm² | 0,128–3,33 |
| Cross-section, AWG | 26–12 |
| Crimp profile | 4 indenters / 8 indentations |
| Suitable for | Deutsch DT, DTM, DTP, HD30, HDP20, DRC |
| Tool length, mm | 241 |
| Other designations | HD-2612DG |
| Net weight, kg | 0,7 |
| Tariff code (CN/TARIC) | 8203 20 00 (8203200000) |
| Import duty from third countries | 1,7 % |
