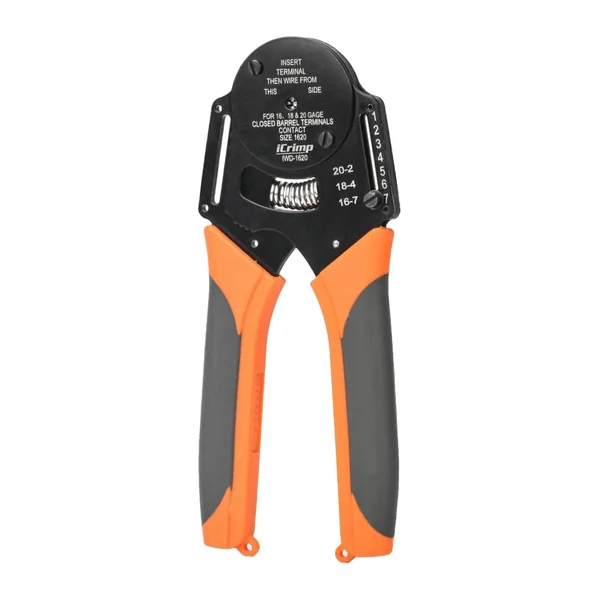

IWD-1620 — Crimping pliers for turned contacts IWISS, 0.51–1.31 mm² (AWG 20–16)
Manufacturer: IWISS · Code: IWD-1620
€68.93 incl. VAT / pc€57.44 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
IWD-1620 - Ratchet crimping tool for stranded contacts size 16, 0.51–1.31 mm² (AWG 20–16), jaw diameter 3.8 mm.
Features: four teeth / eight imprints - secure and durable pressing; the ratchet controls the cycle in both directions; compact - for on-site service, prototypes, and small series; length 165 mm, 0.29 kg.
Application: Deutsch DT pins and sockets, Amphenol AT connectors, and heavy-duty connector contacts for automotive, truck, construction, agricultural, and marine equipment.
Technical data
| Product type | crimping pliers for turned contacts |
|---|---|
| Cross-section, mm² | 0,51–1,31 |
| Cross-section, AWG | 20–16 |
| Crimp profile | 4 indenters / 8 indentations |
| Jaw diameter, mm | 3,8 |
| Suitable for | Deutsch DT, Amphenol AT, circular connectors |
| Tool length, mm | 165 |
| Net weight, kg | 0,29 |
| Tariff code (CN/TARIC) | 8203 20 00 (8203200000) |
| Import duty from third countries | 1,7 % |
