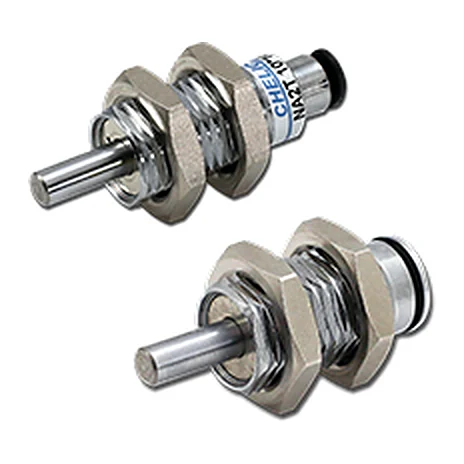

NA2T 6×5-B — Built-in mini cylinder NA2T Ø6×5 mm, single-acting, with fitting for Ø4

Name: МЕХАТРОНИКС ЕООД
Address: бул. „Кукленско шосе“ 17, хале 7, Пловдив, Пловдив, 4004, BG
Telephone: +35932395989

Manufacturer: Chelic · Code: NA2T 6×5-B

Price on request

In stock

Description

Miniature embedded cylinder NA2T Ø6×5 mm, single-acting, with fitting for Ø4.

NA2 - cartridge cylinder, single-acting; NA2B standard, NA2S built-in, NA2T - with a fitting for direct hose connection.
Code NA2T 6×5-B: Ø6, stroke 5 mm (standard 5/10/15), B = external thread on the rod.
NA2T Ø6: for PU0425 hose (Ø4); mounting thread on the body M10×1.0; thread on the rod M3×0.5; rod Ø3.
Pressure 1.5–6 kgf/cm² (150–600 kPa), max. 7; 0–60 °C; 50–500 mm/s.
Theoretical force 1.4 kgf at 5 kgf/cm²
Applications: tightening, pushing, stopping, aligning, and sorting parts; the allowable lateral load on the rod for Ø6 is approximately 0.1 N.

Product type	Cartridge cylinder with built-in fitting
Series	NA2 (NA2T)
Action	Single-acting
Bore diameter, mm	6
Stroke, mm	5
Tube, Ø mm	4
Rod thread	Male M3×0.5 (B)
Body mounting thread	M10×1,0
Operating pressure	0,15–0,6 MPa (1,5–6 kgf/cm²)
Maximum pressure	0,7 MPa (7 kgf/cm²)
Operating temperature	0–60 °C
Piston speed	50–500 mm/s
Theoretical force at 5 kgf/cm²	1,4 kgf
Tariff code (CN/TARIC)	8412 31 00 (8412310090)
Import duty from third countries	4,2 %
