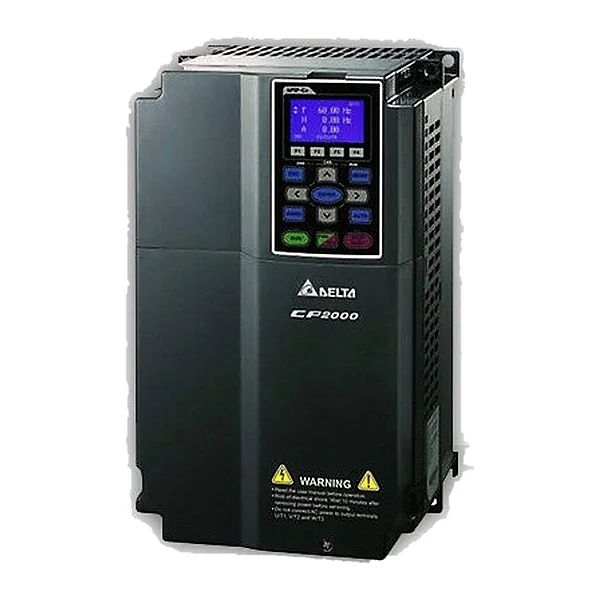

VFD110CP4EA-21 — Frequency inverter VFD-CP2000, 11 kW, 460 V AC, 3ph

Manufacturer: Delta Electronics · Code: VFD110CP4EA-21

€1,028.54 incl. VAT / pc€857.12 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

VFD110CP4EA-21 — frequency inverter VFD-CP2000 for fans and pumps, 11 kW (LD) / 7.5 kW (ND), 460 V AC three-phase (380–480 V AC) · rated output current normal duty (ND) 18 A · IP20 / NEMA 1 · built-in brake chopper · built-in EMC filter (frames A–C) · control methods V/F, SVC and PM (permanent magnet motors) · fan and pump functions: PID, sleep/wake-up mode, fire mode and bypass, flying start, synchronous control of up to 8 pumps · built-in PLC (10K steps) · built-in Modbus (RS-485) and BACnet MS/TP · overload LD: 120 % for 1 min; ND: 120 % for 1 min and 160 % for 3 s.

Technical data

Series	VFD-CP2000
Power, kW	11
Power supply	460 V AC, 3ph
LD current, A	24
ND current, A	18
Communication	RS-485 Modbus + BACnet MS/TP — built-in; optional cards: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP, CANopen, BACnet/IP
STO	No
EMC filter	Built-in EMC filter (frames A–C); optional for frame D and above
Options	I/O extension and PG cards, BACnet/IP card, KPC-CC01 digital keypad, braking module and resistor, AC / DC reactors
Certificates	CE (LVD EN 61800-5-1; EMC EN 61800-3, EN 61000-3-12, IEC 61000-6-2/-6-4), UL, cUL, RCM, RoHS; SEMI F47, GB/T 12668.3
Net weight, kg	5,4
Tariff code (CN/TARIC)	8504 40 95 (8504409590)
Import duty from third countries	0 %

Documents

Документи VFD-CP2000 — център за сваляне на Delta (англ.)
