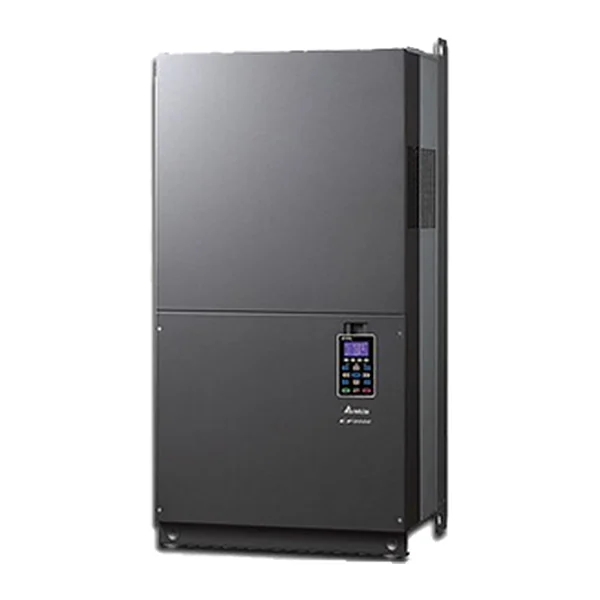

VFD2500CP43A-21 — Frequency inverter VFD-CP2000, 250 kW, 460 V AC, 3ph

Manufacturer: Delta Electronics · Code: VFD2500CP43A-21

€15,263.34 incl. VAT / pc€12,719.45 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

VFD2500CP43A-21 — VFD-CP2000 fan & pump AC drive, 250 kW, 460Vac 3ph. V/F & SVC for variable torque, multi-pump / sleep / fire mode, PID, BACnet & Modbus, IP20. Rated current: LD 481 A / ND 395 A.

Technical data

Series	VFD-CP2000
Power, kW	250
Power supply	460 V AC, 3ph
LD current, A	481
ND current, A	395
Communication	RS-485 Modbus + BACnet MS/TP — built-in; optional cards: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP, CANopen, BACnet/IP
STO	No
EMC filter	not built-in for frames A–C; optional from frame D upwards
Options	I/O extension cards, BACnet/IP card (eZVFD), KPC-CC01 digital keypad, braking module and resistor, AC reactor (DC reactor built in)
Certificates	CE (LVD EN 61800-5-1; EMC EN 61800-3, EN 61000-3-12, IEC 61000-6-2/-6-4), UL, cUL, RCM, RoHS; SEMI F47, GB/T 12668.3
Net weight, kg	134
Product dimensions, mm	500 × 1240,2 × 397
Tariff code (CN/TARIC)	8504 40 95 (8504409590)
Import duty from third countries	0 %

Documents

Документи VFD-CP2000 — център за сваляне на Delta (англ.)
