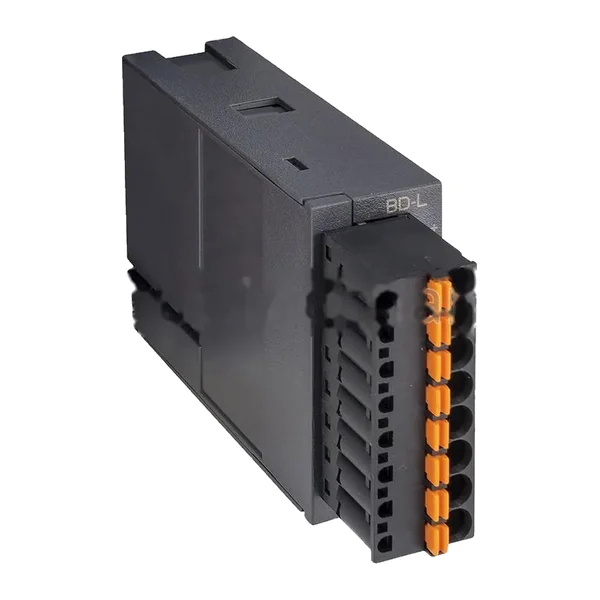

DTM-BDR — Delta DTM output expansion cassette, 4 channels: SPST relay (NO contact), 250 VAC, 2 A
Fabrikant: Delta Electronics · Code: DTM-BDR
€ 54,16 incl. btw / st.€ 45,13 excl. btw
Levering op aanvraag — de levertijd wordt in de offerte bevestigd.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Productbeschrijving
Delta DTM output expansion module, 4 channels: SPST relay (normally open contact), 250 VAC, 2 A. Installed in the main DTM module or in the measurement module DTMN04 / DTMN08; powered by the module.
Technische gegevens
| Serie | DTM |
|---|---|
| Grootte | 25 × 48 × 77 mm |
| Uitgang 1 | 4 × relais SPST (maakcontact), 250 VAC, 2 A |
| Voeding | Via de module DTM |
| Douanetariefcode (GN/TARIC) | 9032 90 00 (9032900090) |
| Invoerrecht uit derde landen | 2,8 % |
