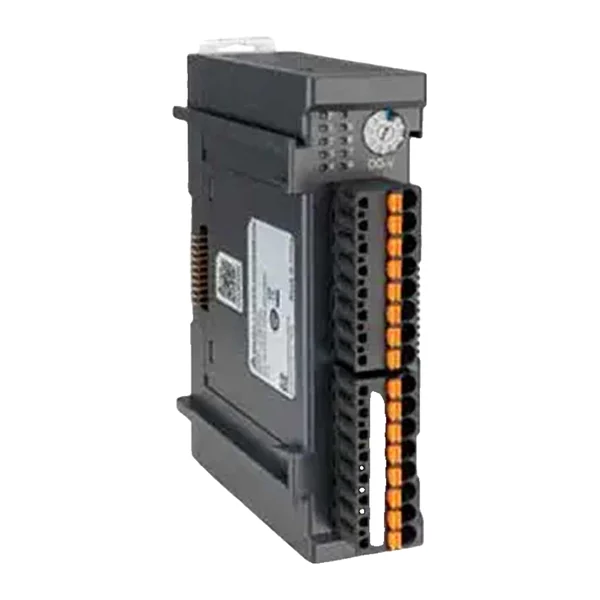

DTM-CT030 — I/O module Delta DTM, 8 current transformer inputs — heater current (AC) and heater break detection (transformers not included: DT3-CT30A or DT3-CT100A; resolution 0.1 A, accuracy ±5 % of range)
Fabrikant: Delta Electronics · Code: DTM-CT030
€ 128,95 incl. btw / st.€ 107,46 excl. btw
Levering op aanvraag — de levertijd wordt in de offerte bevestigd.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Productbeschrijving
Delta DTM input/output module, 8 inputs for current transformers – heater current (AC) and heater break detection (transformers not included: DT3-CT30A or DT3-CT100A; resolution 0.1 A, accuracy ±5 % of the range).
Technische gegevens
| Serie | DTM |
|---|---|
| Grootte | 30 × 114 × 81 mm |
| Communicatie | Interne bus naar de hoofdmodule DTM |
| Voeding | 24 VDC (3 W) |
| Douanetariefcode (GN/TARIC) | 9032 90 00 (9032900090) |
| Invoerrecht uit derde landen | 2,8 % |
