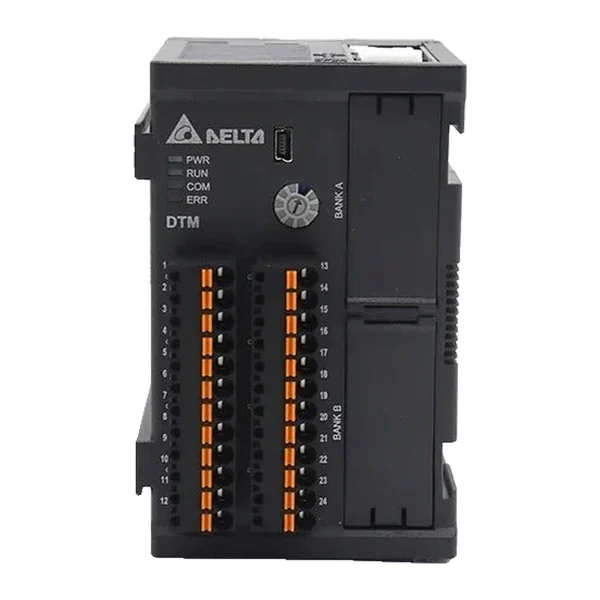

DTMN08 — Measurement module Delta DTM, 8 input channels, outputs via DTM-BD□ output cassette; connects to the DTMR / DTME main module via internal bus
Fabrikant: Delta Electronics · Code: DTMN08
€ 491,45 incl. btw / st.€ 409,54 excl. btw
Levering op aanvraag — de levertijd wordt in de offerte bevestigd.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Productbeschrijving
Delta DTM measurement module, 8 input channels, outputs via DTM-BD□ output module; connects to the main module DTMR / DTME via an internal bus. Inputs: thermocouple K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100, Ni120, Cu50; 0~10 V, 0~5 V, 0~50 mV, 0~20 mA, 4~20 mA; PID, programmable PID, ON / OFF, manual; measurement period 0.1 s for all 8 inputs; DIN rail mounting.
Technische gegevens
| Serie | DTM |
|---|---|
| Grootte | 71 × 114 × 81 mm |
| Uitgang 1 | Via uitgangscassette DTM-BD□ (4 kanalen) |
| Communicatie | Interne bus naar de hoofdmodule DTM |
| Voeding | 24 VDC (5 W) |
| Aantal alarmuitgangen | Via de uitgangsmodules (13 alarmmodi) |
| Douanetariefcode (GN/TARIC) | 9032 10 20 (9032102090) |
| Invoerrecht uit derde landen | 2,8 % |
