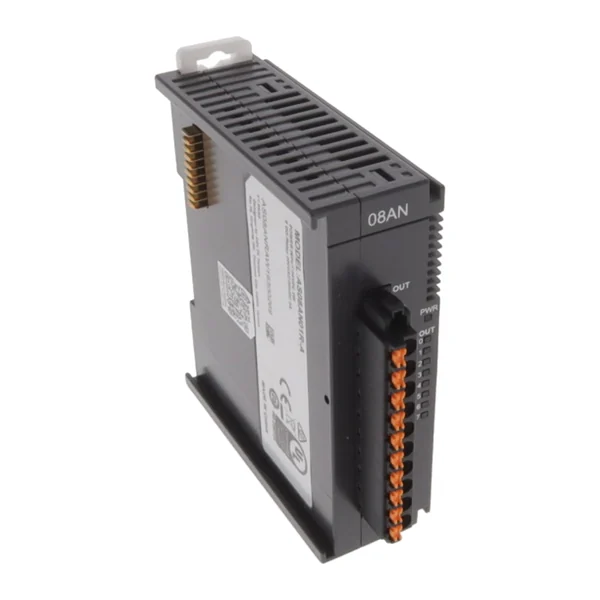

AS08AN01R-A — AS (Module) – 8 outputs (Relay)
Manifattur: Delta Electronics · Kodiċi: AS08AN01R-A
€104.81 VAT inkluża / biċċa€87.34 mingħajr VAT
Disponibbli
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
AS08AN01R-A - Digital output module for PLC series AS · 8 relay outputs 10–240 V AC / 5–24 V DC · 2 A per output, 8 A per common terminal · up to 1 Hz with active load · response time 10 ms · isolation 1500 V AC · removable terminal block with spring terminals · power consumption from internal power supply 1.7 W · LED for each input/output · DIN rail mounting without chassis (slide-and-lock) · replacement only with power off.
Data teknika
| Serje | AS |
|---|---|
| Outputs diġitali | 8 |
| Karatteristiċi addizzjonali | Outputs tar-relè (240 V AC / 24 V DC) |
| Piż nett, kg | 0,12 |
| Kodiċi tariffarju (NM/TARIC) | 8538 90 99 (8538909999) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 1,7 % |
