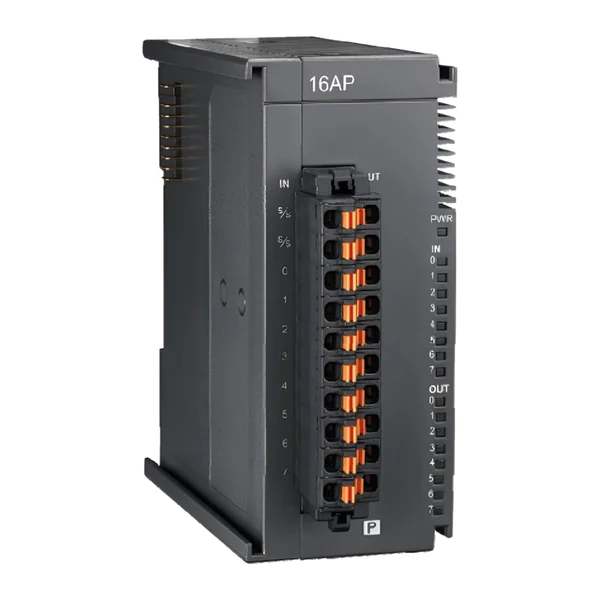

AS16AP11P-A — AS (Module) – 8 inputs + 8 outputs (PNP)
Manifattur: Delta Electronics · Kodiċi: AS16AP11P-A
Disponibbli
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
AS16AP11P-A – Digital input/output module for AS series PLC · 8 inputs 24 V DC, 4.2 mA, sink or source · Activation above 15 V DC, deactivation below 5 V DC · Response time < 20 µs (OFF→ON) / < 200 µs (ON→OFF), programmable filter 0–25 ms (10 ms default) · Input resistance 5.6 kΩ, isolation 500 V AC · 8 PNP transistor outputs (sourcing) 5–30 V DC · 0.5 A per output, 4 A per common output · Up to 100 Hz with active load · Response time 0.5 ms · Isolation 500 V AC · Removable terminal block with spring terminals · Power consumption from internal power supply 0.7 W · LED for each input/output · DIN rail mounting without chassis (slide-and-lock) · Replacement only with power off.
Data teknika
| Serje | AS |
|---|---|
| Inputs diġitali | 8 |
| Outputs diġitali | 8 |
| Karatteristiċi addizzjonali | Inputs 24 V DC, 5 mA; outputs tat-tranżistur PNP, 5–30 V DC, 0.5 A |
| Piż nett, kg | 0,12 |
| Kodiċi tariffarju (NM/TARIC) | 8538 90 99 (8538909999) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 1,7 % |
