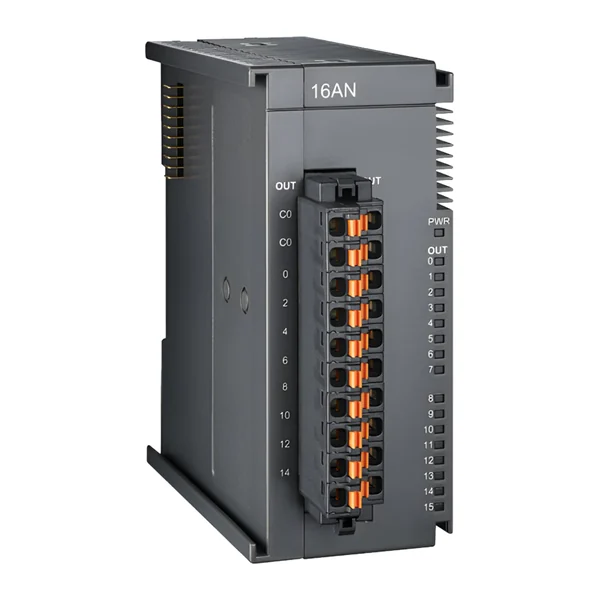

AS16AN01R-A — AS (Module) – 16 digital outputs (relays)
Manifattur: Delta Electronics · Kodiċi: AS16AN01R-A
Disponibbli
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
AS16AN01R-A — Digital Output Module for AS Series PLCs: This module features 16 relay outputs. It supports 10–240 V AC / 5–24 V DC, with a current rating of 2 A per output and 8 A for the common output. It has a removable terminal block with spring terminals. The power consumption from the internal power supply is 3.4 W. It includes LED indicators for each output and the power supply (PWR). It can be mounted on a DIN rail without a chassis (slide-and-lock mechanism). The module can only be replaced when the power supply is turned off. Up to 32 modules can be expanded to a single processor. Configuration is performed in HWCONFIG.
Data teknika
| Serje | AS |
|---|---|
| Outputs diġitali | 16 |
| Karatteristiċi addizzjonali | Outputs tar-relè (240 V AC / 24 V DC) |
| Piż nett, kg | 0,158 |
| Kodiċi tariffarju (NM/TARIC) | 8538 90 99 (8538909999) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 1,7 % |
