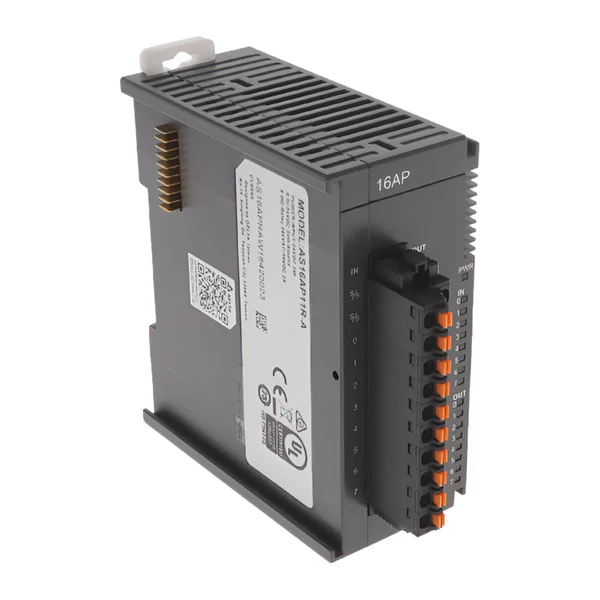

AS16AP11R-A — AS (Module) – 8 inputs + 8 outputs (Relay)
Manifattur: Delta Electronics · Kodiċi: AS16AP11R-A
Disponibbli
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
AS16AP11R-A – digital input/output module for AS series PLC. · 8 inputs: 24 V DC, 4.2 mA, sink or source · Turns on above 15 V DC, turns off below 5 V DC · Response time: < 20 µs (OFF→ON) / < 200 µs (ON→OFF), programmable filter 0–25 ms (10 ms default) · Input resistance: 5.6 kΩ, isolation: 500 V AC · 8 relay outputs: 10–240 V AC / 5–24 V DC · 2 A per output, 8 A per common terminal · Up to 1 Hz with active load · Response time: 10 ms · Isolation: 1500 V AC · Removable terminal block with spring terminals · Power consumption from internal power supply: 1.9 W · LED for each input/output · DIN rail mounting without chassis (slide-and-lock) · Replacement only with power off.
Data teknika
| Serje | AS |
|---|---|
| Inputs diġitali | 8 |
| Outputs diġitali | 8 |
| Karatteristiċi addizzjonali | Inputs 24 V DC, 5 mA; outputs tar-relè 240 V AC / 24 V DC, 2 A |
| Piż nett, kg | 0,138 |
| Kodiċi tariffarju (NM/TARIC) | 8538 90 99 (8538909999) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 1,7 % |
