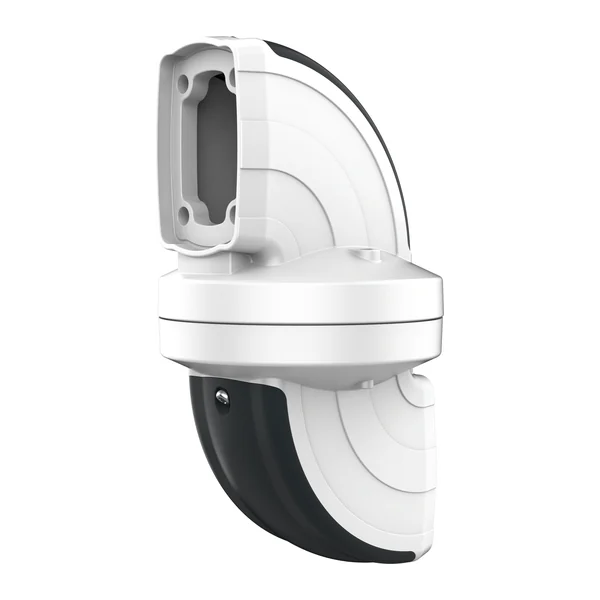

TK045.500 — Support arm system module TK045: horizontal rotating module, S-shaped, hinge type between two profiles, rotation angle 340° (± 170°) — Teknokol
Manifattur: Teknokol · Kodiċi: TK045.500
€165.86 VAT inkluża / biċċa€138.22 mingħajr VAT
Disponibbli
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
Intermediate hinge, rotating — Teknokol TK045.
- Intermediate hinge between two horizontal profiles - the two arms move semi-independently relative to each other.
- Weight: 1.73 kg, Dimensions: 108 × 205 × 108 mm (W × H × D), Rotation: 310°.
- Designed for light configurations.
Data teknika
| Tip | Ċerniera |
|---|---|
| Sistema | TK045 |
| Verżjoni | idur |
| Materjal | aluminju |
| Kulur | RAL 7035 / RAL 7016 |
| Piż, kg | 1,73 |
| Dimensjonijiet, mm | 108 × 205 × 108 |
| Rotazzjoni | 310° |
| Grad ta’ protezzjoni | IP65 |
| Forza statika tas-sistema | 1100 N sa 500 mm (skema 1) / 520 N sa 250 mm (skema 2); driegħ sa 2000 mm (skema 1) / 1500 mm (skema 2) |
| Kodiċi tariffarju (NM/TARIC) | 8302 49 00 (8302490099) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 2,7 % |
