TK045.600 — Support arm system module TK045: rotating base 90°, base mounting, rotation angle 340° (± 170°) — Teknokol
Manifattur: Teknokol · Kodiċi: TK045.600
€172.73 VAT inkluża / biċċa€143.94 mingħajr VAT
Disponibbli
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott

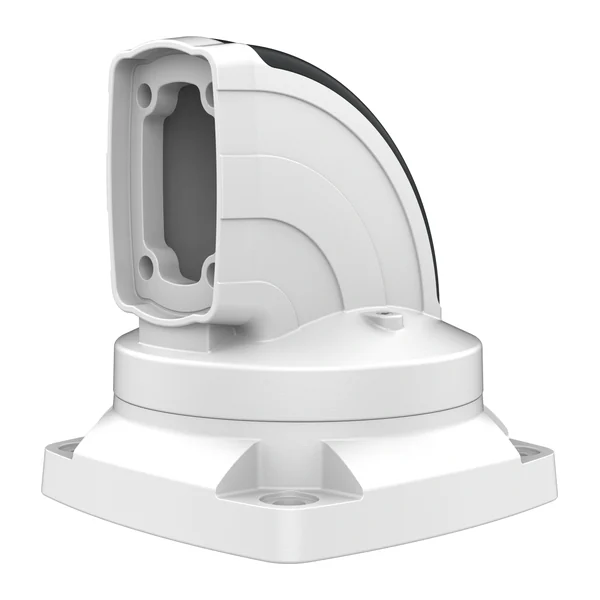

Rotating base with a horizontal 90° outlet — Teknokol TK045.
- Mounting base for top mounting (e.g., on a machine); the arm extends horizontally.
- Weight 1.735 kg, dimensions 124 x 133 x 124 mm (W x H x D), rotation 310°.
- Designed for light configurations.
Data teknika
| Tip | Bażi |
|---|---|
| Sistema | TK045 |
| Verżjoni | idur |
| Materjal | aluminju |
| Kulur | RAL 7035 / RAL 7016 |
| Piż, kg | 1,735 |
| Dimensjonijiet, mm | 124 × 133 × 124 |
| Rotazzjoni | 310° |
| Grad ta’ protezzjoni | IP65 |
| Forza statika tas-sistema | 1100 N sa 500 mm (skema 1) / 520 N sa 250 mm (skema 2); driegħ sa 2000 mm (skema 1) / 1500 mm (skema 2) |
| Kodiċi tariffarju (NM/TARIC) | 7616 99 90 (7616999099) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 6 % |
