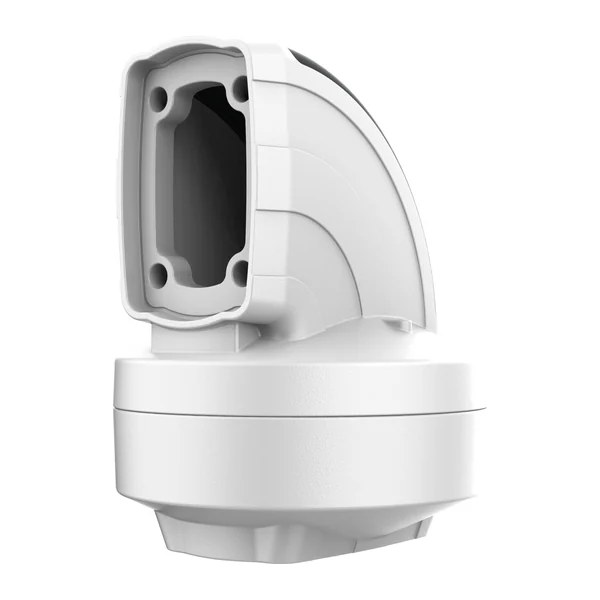

TK045.510 — 90° angle joint with rotating vertical profile — Teknokol TK045
Manifattur: Teknokol · Kodiċi: TK045.510
Prezz fuq talba
Kunsinna fuq ordni — iż-żmien jiġi kkonfermat mal-offerta.
Deskrizzjoni tal-prodott
90° angular connection with a rotating vertical profile — Teknokol TK045.
- Connects the horizontal profile to the vertical profile and allows the vertical profile to rotate left and right.
- Weight 1.6 kg, dimensions 108 × 140 × 108 mm (W × H × D), rotation 310°.
Data teknika
| Tip | Konnessjoni angolari |
|---|---|
| Sistema | TK045 |
| Verżjoni | idur |
| Materjal | aluminju |
| Kulur | RAL 7035 |
| Piż, kg | 1,6 |
| Dimensjonijiet, mm | 108 × 140 × 108 |
| Rotazzjoni | 310° |
| Grad ta’ protezzjoni | IP65 |
| Forza statika tas-sistema | 1100 N sa 500 mm (skema 1) / 520 N sa 250 mm (skema 2); driegħ sa 2000 mm (skema 1) / 1500 mm (skema 2) |
| Kodiċi tariffarju (NM/TARIC) | 7616 99 90 (7616999099) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 6 % |
