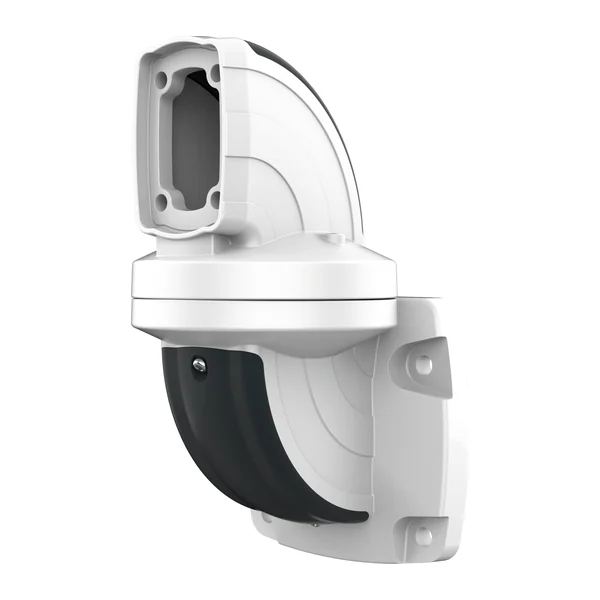

TK045.700 — Support arm system module TK045: rotating base S-shaped, wall mounting, rotation angle 340° (± 170°) — Teknokol
Manifattur: Teknokol · Kodiċi: TK045.700
€165.86 VAT inkluża / biċċa€138.22 mingħajr VAT
Disponibbli
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
Rotating wall bracket, horizontal outlet — Teknokol TK045.
- Wall bracket for mounting on the wall or the side of the machine, when mounting to the floor is not possible; the arm extends horizontally.
- Weight 1.855 kg, dimensions 118 x 214 x 118 mm (W x H x D), rotation 310°.
- Designed for light configurations.
Data teknika
| Tip | Ċerniera |
|---|---|
| Sistema | TK045 |
| Verżjoni | idur |
| Materjal | aluminju |
| Kulur | RAL 7035 / RAL 7016 |
| Piż, kg | 1,855 |
| Dimensjonijiet, mm | 118 × 214 × 118 |
| Rotazzjoni | 310° |
| Grad ta’ protezzjoni | IP65 |
| Forza statika tas-sistema | 1100 N sa 500 mm (skema 1) / 520 N sa 250 mm (skema 2); driegħ sa 2000 mm (skema 1) / 1500 mm (skema 2) |
| Kodiċi tariffarju (NM/TARIC) | 8302 49 00 (8302490099) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 2,7 % |
