513 22 03 — Data cable Schleppflex® PUR-C-(TP)-513, twisted pairs, shielded 3×2×0.34 mm², grey
Manufacturer: ConCab · Code: 513 22 03
€7.33 incl. VAT / m€6.11 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description

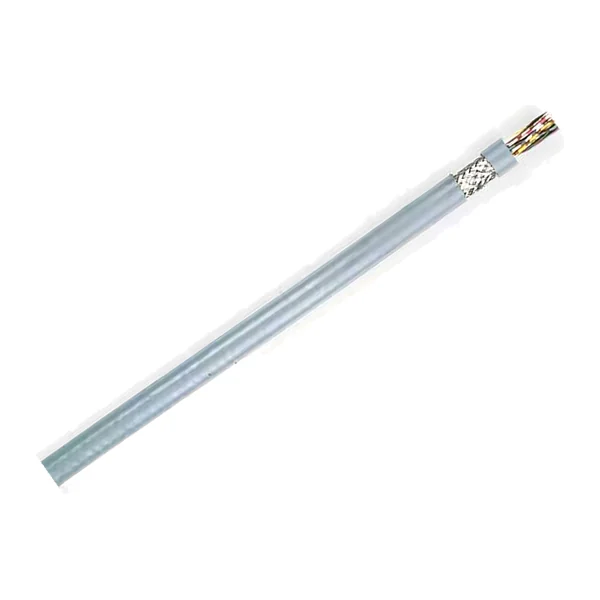

Schleppflex® PUR-C-(TP)-513 data cable, twisted pairs, shielded 3×2×0.34 mm², gray.
- Cable with twisted pairs and low capacitance for analog and digital signals in cable chains.
- For connecting encoders and sensors in measurement and control technology.
- Selected twisting steps of the pairs provide low mutual influence.
- Tinned copper braiding; halogen-free PUR jacket, resistant to oils and abrasion.
- Bending radius during movement 7.5×d; operating temperature during movement −40…+80 °C.
- UL Style 20549 / 20233 / CMX and CSA AWM approvals
- Specification 3×2×0.34: outer diameter 6.8 mm, weight 54 kg/km, copper 39 kg/km.
Technical data
| Product type | Drag chain data cable (twisted pairs) |
|---|---|
| Manufacturer | ConCab kabel GmbH |
| Series | CC-Schleppflex® PUR-C-(TP)-513 |
| Number of cores × cross-section | 3×2×0,34 |
| Cross-section, mm² | 0,34 |
| Number of cores | 6 (3 pairs) |
| AWG | 3×2×AWG22 |
| Shield | yes — overall tinned copper braid |
| Sheath | PUR, halogen-free, flame-retardant (EN 60332-1-2) |
| Core insulation | polypropylene (PP); colours to DIN 47100; cores twisted in pairs |
| Sheath colour | grey (RAL 7001) |
| Min. bending radius | flexible 7.5×d |
| Operating temperature | fixed −50…+80 °C; flexible −40…+80 °C |
| Capacitance | core/core ≈ 60 nF/km; core/shield ≈ 160 nF/km (800 Hz) |
| Conductor | extra-fine-stranded copper conductor, class 6 (DIN VDE 0295) |
| Standards and approvals | to DIN VDE 0812; UL Style 20549, 20233, CMX; CSA AWM FT1 |
| Outer diameter, mm | 6,8 |
| Weight, kg/km | 54 |
| Copper, kg/km | 39 |
| Application | drag chains (energy chains) |
| Sold by | by the metre |
| Tariff code (CN/TARIC) | 8544 49 95 (8544499590) |
| Import duty from third countries | 3,7 % |
