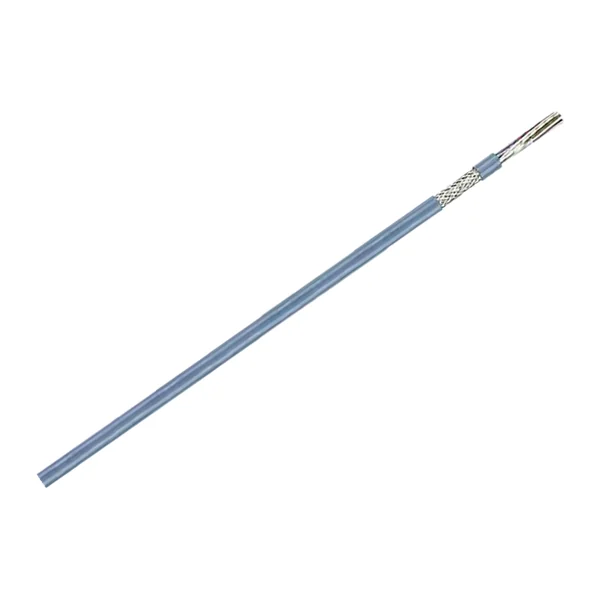

592 26 12 — Data cable Schleppflex® PUR-C-592, shielded 12×0.14 mm², grey
Manufacturer: ConCab · Code: 592 26 12
€4.69 incl. VAT / m€3.91 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Data cable Schleppflex® PUR-C-592, shielded, 12×0.14 mm², gray.
- Shielded cable for data and signals with low capacitance, suitable for cable chains, robots, and manipulators.
- Strands with PP insulation, colors according to DIN 47100; strand capacity ≈ 60 nF/km.
- Halogen-free PUR sheath, resistant to wear, notches, oils, hydrolysis and microbes.
- Bending radius during movement: 5×d
- Operating temperature during movement −40…+80 °C.
- UL Style 20549 / 20233 / CMX and CSA AWM approvals
- Specification 12×0.14: outer diameter 6.3 mm, weight 41 kg/km, copper 28 kg/km.
Technical data
| Product type | Drag chain data cable |
|---|---|
| Manufacturer | ConCab kabel GmbH |
| Series | CC-Schleppflex® PUR-C-592 |
| Number of cores × cross-section | 12×0,14 |
| Cross-section, mm² | 0,14 |
| Number of cores | 12 |
| AWG | 12×AWG26 |
| Shield | yes — tinned copper braid |
| Sheath | PUR, halogen-free, flame-retardant (EN 60332-1-2) |
| Core insulation | polypropylene (PP); colours to DIN 47100 |
| Sheath colour | grey (RAL 7001) |
| Rated voltage | 300 V (for 0.14 mm²) |
| Min. bending radius | flexible 5×d |
| Operating temperature | fixed −50…+80 °C; flexible −40…+80 °C |
| Capacitance | core/core ≈ 60 nF/km; core/shield ≈ 160 nF/km (800 Hz) |
| Conductor | extra-fine-stranded copper conductor, class 6 (DIN VDE 0295) |
| Standards and approvals | to DIN VDE 0250, 0285, 0812; UL Style 20549, 20233, CMX; CSA AWM FT1 |
| Outer diameter, mm | 6,3 |
| Weight, kg/km | 41 |
| Copper, kg/km | 28 |
| Application | drag chains (energy chains) |
| Sold by | by the metre |
| Tariff code (CN/TARIC) | 8544 49 95 (8544499590) |
| Import duty from third countries | 3,7 % |
