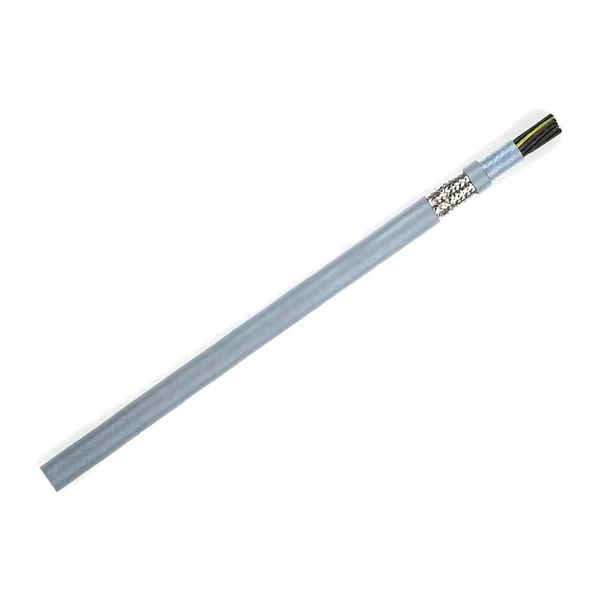

576 20 07 — Cable for drag chains Schleppflex® PUR-C-576, shielded 7G0.5 mm², grey
Manufacturer: ConCab · Code: 576 20 07
€6.22 incl. VAT / m€5.18 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Cable for Schleppflex® PUR-C-576 cable ducts, shielded 7G0.5 mm², gray.
- Shielded control and signal cable for cable chains, for indoor and outdoor use.
- PUR sheath with high resistance to tearing, abrasion, and cuts; suitable for use with aggressive and mineral oils.
- Overall tinned copper braid over an inner PVC jacket.
- Class 6 conductors, black with white numbers, yellow-green protective conductor.
- Bending radius 7.5 x d during movement, 5 x d when stationary
- 300/500 V according to VDE, 600 V according to UL/CSA; UL Style 10012 / 20234.
- Specification 7G0.5: outer diameter 11.6 mm, weight 195 kg/km, copper 66 kg/km.
Technical data
| Product type | Drag chain cable (control, shielded) |
|---|---|
| Manufacturer | ConCab kabel GmbH |
| Series | CC-Schleppflex® PUR-C-576 |
| Number of cores × cross-section | 7G0,5 |
| Cross-section, mm² | 0,5 |
| Number of cores | 7 |
| AWG | 7×AWG20 |
| Shield | yes — tinned copper braid over inner PVC sheath |
| Sheath | PUR, flame-retardant (EN 60332-1-2), resistant to hydrolysis and microbes |
| Core insulation | PVC; black cores with white numbers, green-yellow protective earth core (from 3 cores) |
| Sheath colour | grey (RAL 7001) |
| Rated voltage | 300/500 V (VDE/IEC); 600 V (UL/CSA) |
| Min. bending radius | fixed 5×d; flexible 7.5×d |
| Operating temperature | fixed −40…+80 °C; flexible 0…+70 °C (VDE), −5…+80 °C (UL) |
| Conductor | extra-fine-stranded copper conductor, class 6 (DIN VDE 0295) |
| Standards and approvals | to DIN VDE 0250, 0285; UL Style 10012 / 20234; CSA AWM I A/B, II A/B FT1 |
| Outer diameter, mm | 11,6 |
| Weight, kg/km | 195 |
| Copper, kg/km | 66 |
| Application | drag chains (energy chains) |
| Sold by | by the metre |
| Tariff code (CN/TARIC) | 8544 49 95 (8544499590) |
| Import duty from third countries | 3,7 % |
