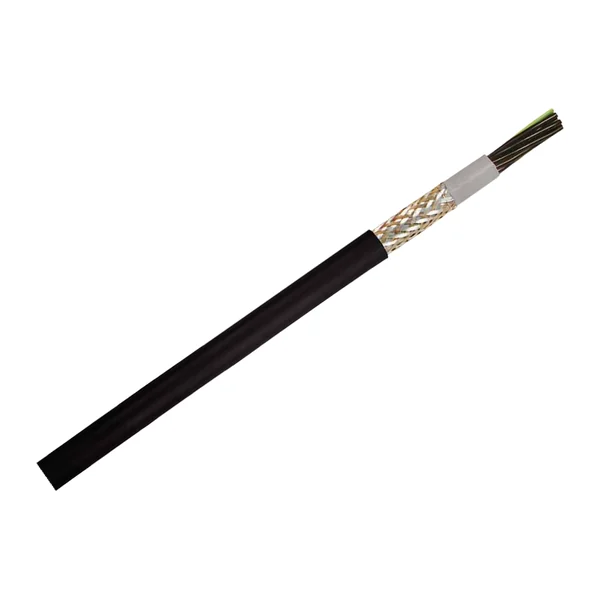

573 20 12 — Cable for drag chains Schleppflex® PVC-C-573, shielded 12G0.5 mm², black
Manufacturer: ConCab · Code: 573 20 12
€7.24 incl. VAT / m€6.03 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Cable for cable duct systems Schleppflex® PVC-C-573, shielded 12G0.5 mm², black.
- Shielded control cable for cable carriers, measurement and control technology.
- Overall braiding of tinned copper over an inner PVC jacket - protection against electromagnetic interference.
- Strands of class 6 with PVC insulation, black with white markings, yellow-green protective wire.
- PVC blend outer sheath, UV resistant, resistant to oils and coolants, self-extinguishing.
- Bending radius 7.5 x d during movement, 5 x d when stationary
- 300/500 V according to VDE, 600 V according to UL/CSA (UL Style 2587).
- Specification 12G0.5: outer diameter 13.1 mm, weight 204 kg/km, copper 110 kg/km.
Technical data
| Product type | Drag chain cable (control, shielded) |
|---|---|
| Manufacturer | ConCab kabel GmbH |
| Series | CC-Schleppflex® PVC-C-573 |
| Number of cores × cross-section | 12G0,5 |
| Cross-section, mm² | 0,5 |
| Number of cores | 12 |
| AWG | 12×AWG20 |
| Shield | yes — tinned copper braid over inner PVC sheath |
| Sheath | PVC, UV-resistant, oil-resistant, flame-retardant (EN 60332-1-2) |
| Core insulation | PVC; black cores with white numbers, green-yellow protective earth core (from 3 cores) |
| Sheath colour | black (RAL 9005) |
| Rated voltage | 300/500 V (VDE/IEC); 600 V (UL/CSA) |
| Min. bending radius | fixed 5×d; flexible 7.5×d |
| Operating temperature | fixed −40…+90 °C; flexible 0…+70 °C (VDE), −5…+90 °C (UL) |
| Conductor | extra-fine-stranded copper conductor, class 6 (DIN VDE 0295) |
| Standards and approvals | to DIN VDE 0285; UL Style 2587; CSA AWM I A/B, II A/B FT1 |
| Outer diameter, mm | 13,1 |
| Weight, kg/km | 204 |
| Copper, kg/km | 110 |
| Application | drag chains (energy chains) |
| Sold by | by the metre |
| Tariff code (CN/TARIC) | 8544 49 95 (8544499590) |
| Import duty from third countries | 3,7 % |
