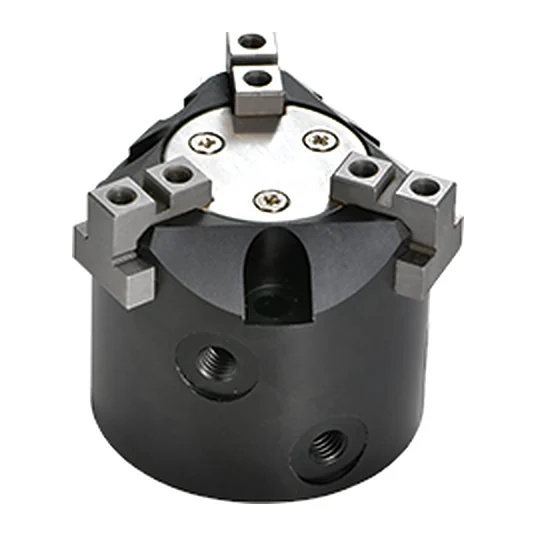

HDQ3-32 — Three-finger gripper HDQ3 Ø32 with round body, stroke 8 mm, double-acting, M5
Manufacturer: Chelic · Code: HDQ3-32
€247.75 incl. VAT / pc€206.46 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Three-finger gripper HDQ3 Ø32 with round body, stroke 8 mm, double-acting, M5.
- Wedge mechanism, three-finger centering, high force and stability, sensor magnet.
- Repeatability: ±0.01 mm; up to 60 cycles/min.
- "P" option - ejector module; sensors CS-8G(N/P), CS-9D, CS-9B, CS-9H, CS-9DN/DP.
- Thread on the ports: M5×0.8 (on the sides and bottom)
Technical data
| Product type | Three-finger gripper with round body |
|---|---|
| Series | HDQ3 |
| Actuation | Double-acting |
| Bore diameter, mm | 32 |
| Stroke, mm | 8 |
| Gripping force | 70 N external / 82 N internal (5 kgf/cm², lever arm 20 mm) |
| Port thread | M5×0,8 |
| Operating pressure | 3–7 kgf/cm² (300–700 kPa) |
| Operating temperature | 0–60 °C |
| Net weight, kg | 0,295 |
| Tariff code (CN/TARIC) | 8412 31 00 (8412310090) |
| Import duty from third countries | 4,2 % |
