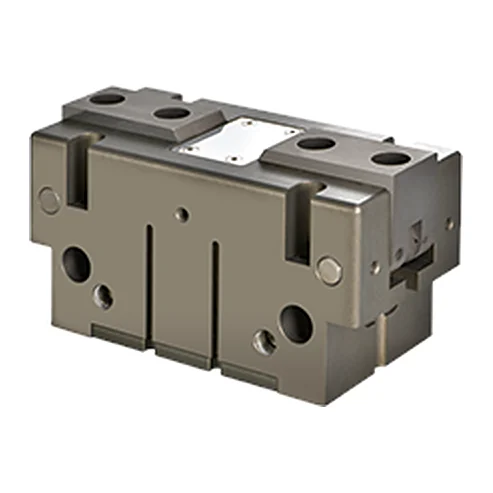

HMY34 — Angular gripper HMY Ø34 (Y-type, wedge mechanism), double-acting, M5
Manufacturer: Chelic · Code: HMY34
Price on request
In stock
Description
Angular gripper HMY Ø34 (Y-type, wedge mechanism), double-acting, M5.
- Wedge mechanism, Y-shaped clamping, high force and stability.
- Recommended part weight 0.97 kg; opening/closing time 0.08 s; repeatability ±0.02 mm.
- Sensors CS-8G/CS-8B and inductive NS-8 (N8); code example: HMY34-8G2-N82.
Technical data
| Product type | Angular gripper |
|---|---|
| Series | HMY |
| Actuation | Double-acting |
| Bore diameter, mm | 34 |
| Rotation angle | -3° (closed) … 15° (open) |
| Gripping force | Closing torque 12.5 N·m (5 kgf/cm²) |
| Port thread | M5×0,8 |
| Operating pressure | 2–8 kgf/cm² (200–800 kPa) |
| Operating temperature | 5–80 °C |
| Tariff code (CN/TARIC) | 8412 31 00 (8412310090) |
| Import duty from third countries | 4,2 % |
