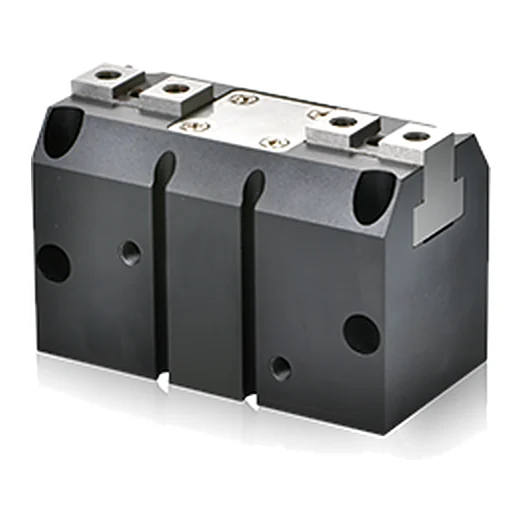

HDW 32 — Pneumatic gripper HDW Ø32, 2 fingers, wedge mechanism, heavy-duty

Name: МЕХАТРОНИКС ЕООД
Address: бул. „Кукленско шосе“ 17, хале 7, Пловдив, Пловдив, 4004, BG
Telephone: +35932395989

Manufacturer: Chelic · Code: HDW 32

Price on request

In stock

Description

Pneumatic gripper HDW Ø32, 2 fingers, cam mechanism, for heavy loads.

HDW – 2-finger pneumatic gripper for heavy loads with a wedge slide; built-in magnet; high force and stability.
Pressure 3–7 kgf/cm² (300–700 kPa), -5…60 °C without freezing, up to 80 cycles/min for Ø20–Ø32, without lubrication.
HDW 32: force 245 N when opening and 221 N when closing - at 5 kgf/cm² and 30 mm arm.
Opening stroke 16 mm (open 96 mm, closed 80 mm)
Connection 2×M5; mounting holes 4×M5×0.8; weight 0.48 kg
Code without sensor; optional CS-8G/8GN/8GP, CS-9D/9B/9H/9DN/9DP, 1 or 2 pieces.

Product type	Pneumatic gripper, parallel, 2 fingers, wedge slide
Series	HDW
Action	Double-acting
Bore diameter, mm	32
Gripping force	245 N opening / 221 N closing (5 kgf/cm², lever arm 30 mm)
Stroke, mm	16 (total; open 96 / closed 80 mm)
Port thread	M5
Operating pressure	0,3–0,7 MPa (3–7 kgf/cm²)
Operating temperature	−5…60 °C (no freezing)
Max. frequency	80 cycles/min
Magnetic piston	Yes (built-in magnet)
Lubrication	Not required
Mass	0,48 kg
Material	Body — aluminium alloy, fingers — alloy steel
Tariff code (CN/TARIC)	8412 31 00 (8412310090)
Import duty from third countries	4,2 %
