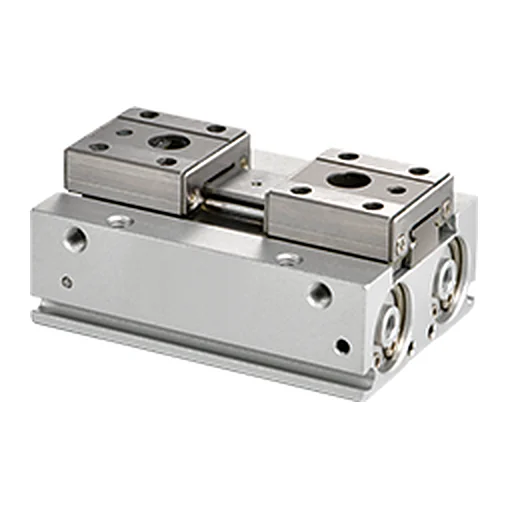

HDF12×12 — Parallel gripper HDF Ø12, stroke 12 mm, low profile, double-acting, M5
Manufacturer: Chelic · Code: HDF12×12
€322.74 incl. VAT / pc€268.95 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Product type | Parallel gripper with linear guide |
|---|---|
| Series | HDF |
| Actuation | Double-acting |
| Bore diameter, mm | 12 |
| Stroke, mm | 12 |
| Gripping force | 48 N (opening/closing, 5 kgf/cm²) |
| Port thread | M5×0,8 |
| Operating pressure | 1,5–7 kgf/cm² (150–700 kPa) |
| Operating temperature | 0–60 °C |
| Net weight, kg | 0,15 |
| Tariff code (CN/TARIC) | 8412 31 00 (8412310090) |
| Import duty from third countries | 4,2 % |
