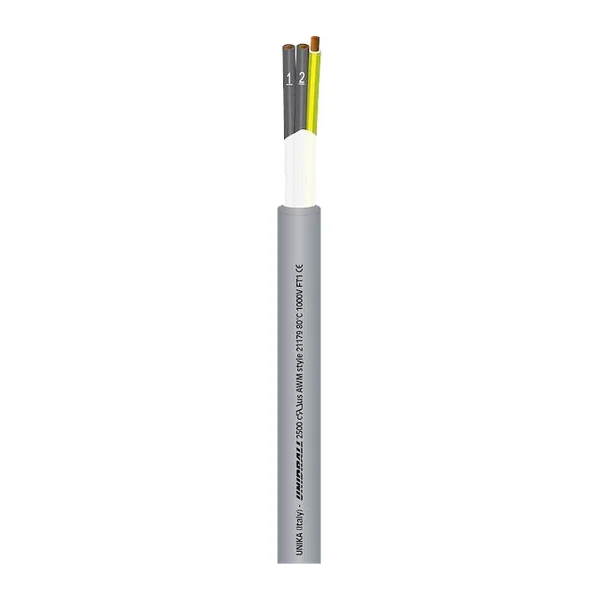

32183 — Кабел за кабеловодещи вериги Unika UNIDRALL 2500 18×0,34 mm², сив
Manufacturer: Unika · Code: 32183
€6.65 incl. VAT / m€5.54 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Product type | Drag chain cable |
|---|---|
| Manufacturer | Unika |
| Series | UNIDRALL 2500 |
| Number of cores × cross-section | 18×0,34 |
| Cross-section, mm² | 0,34 |
| Number of cores | 18 |
| Shield | no |
| Sheath | PVC class 43 to UL 1581 |
| Core insulation | TPO |
| Sheath colour | grey RAL 7040 |
| Rated voltage | 300 V UL (≤ 0,34 mm²) / 1000 V UL (≥ 0,50 mm²) |
| Min. bending radius | fixed 5×d; in drag chain 6×d |
| Operating temperature | fixed −30…+80 °C; in drag chain −5…+80 °C |
| Application | drag chain; up to 400 m/min, up to 25 m/s², 10 million cycles |
| Standards and approvals | UL/CSA AWM style 21179 80 °C 1000 V FT1; UL 758, CSA C22.2 No. 210 (FT1); oil-resistant to IEC 60811-404 |
| Outer diameter, mm | 8,6 |
| Weight, kg/km | 104 |
| Copper, kg/km | 59 |
| Sold by | by the metre |
| Tariff code (CN/TARIC) | 8544 49 95 (8544499590) |
| Import duty from third countries | 3,7 % |
