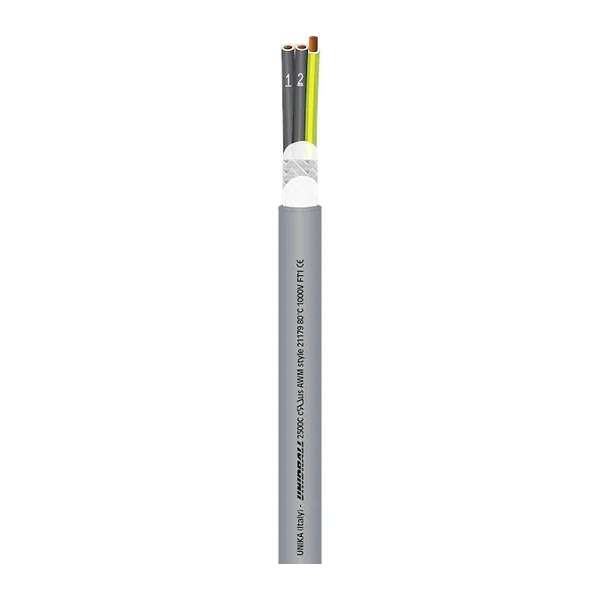

33043 — Кабел за кабеловодещи вериги Unika UNIDRALL 2500 C 4×0,34 mm², сив

Name: МЕХАТРОНИКС ЕООД
Address: бул. „Кукленско шосе“ 17, хале 7, Пловдив, Пловдив, 4004, BG
Telephone: +35932395989

Manufacturer: Unika · Code: 33043

€2.75 incl. VAT / m€2.29 excl. VAT

In stock

Prices are indicative; send an inquiry for a firm quotation.

Technical data

Product type	Drag chain cable
Manufacturer	Unika
Series	UNIDRALL 2500 C
Number of cores × cross-section	4×0,34
Cross-section, mm²	0,34
Number of cores	4
Shield	yes, tinned copper braid, coverage over 85 %
Sheath	PVC class 43 to UL 1581
Core insulation	TPO
Sheath colour	grey RAL 7040
Rated voltage	300 V UL (≤ 0,34 mm²) / 1000 V UL (≥ 0,50 mm²)
Min. bending radius	fixed 5×d; in drag chain 6×d
Operating temperature	fixed −10…+80 °C; in drag chain −5…+80 °C
Application	drag chain; up to 300 m/min, up to 20 m/s², 10 million cycles
Standards and approvals	UL/CSA AWM style 21179 80 °C 1000 V FT1; UL 758, CSA C22.2 No. 210 (FT1); oil-resistant to IEC 60811-404
Outer diameter, mm	5,5
Weight, kg/km	52,8
Copper, kg/km	34
Sold by	by the metre
Tariff code (CN/TARIC)	8544 49 95 (8544499590)
Import duty from third countries	3,7 %
