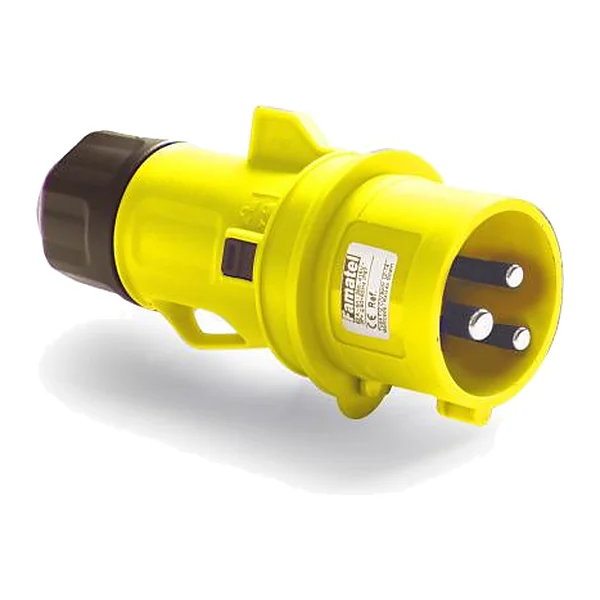

13101 — Industrial portable plug 3P+T 16A 110V IP44/54

13101 — Industrial portable plug 3P+T 16A 110V IP44/54

Manufacturer: Famatel · Code: 13101

€4.80 incl. VAT / pc€4.00 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

SpeedPRO plug. 3P+E, 16 A, 110 V~ 50/60 Hz, 4-hour protective contact, yellow color. Protection class IP44/IP54; screw terminals; polyamide PA6 body; nickel-plated brass contacts; double mounting system — quick threaded connection and integrated anti-loosening clip.

Technical data

SectionIndustrial plugs and sockets
GroupPORTABLE PLUGS IP44/54 | 16A / 32A – SpeedPRO
Product typePortable plug
Number of poles4 (3P+E)
Voltage, V110
Current, A16
Sizeø60 × 150 mm
Degree of protectionIP44/IP54
Colouryellow
Min. qty10
Carton120
Tariff code (CN/TARIC)8536 69 90 (8536699099)
Import duty from third countries2,3 %
