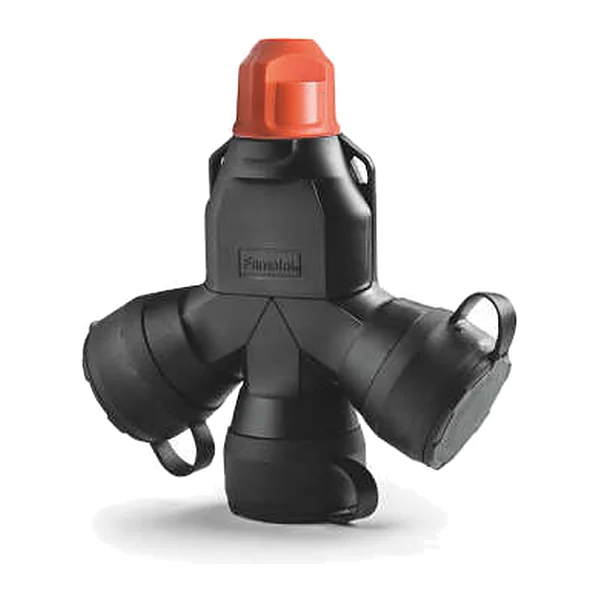

188G — Triple rubber Schuko adapter, standard 3P terminal block with cable seal 16A, IP54
Manufacturer: Famatel · Code: 188G
€19.12 incl. VAT / pc€15.93 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Triple rubber adapter. 2P+E poles, 16 A, protection rating IP54, dimensions 184 × 184 mm, color: black. Triple Shuko adapter with 3P terminal block and cable gland; rubber housing; with grounding (TT), 16 A, 250 V; 3P or 5P terminal block; one-piece housing; hanger (strap); socket caps (pictured).
Technical data
| Section | Domestic plugs, sockets and adaptors |
|---|---|
| Group | ADAPTORS |
| Product type | Triple adaptor (rubber) |
| Number of poles | 3 (2P+E) |
| Current, A | 16 |
| Size | 184 × 184 mm |
| Degree of protection | IP54 |
| Colour | black |
| Min. qty | 5 |
| Carton | 15 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
