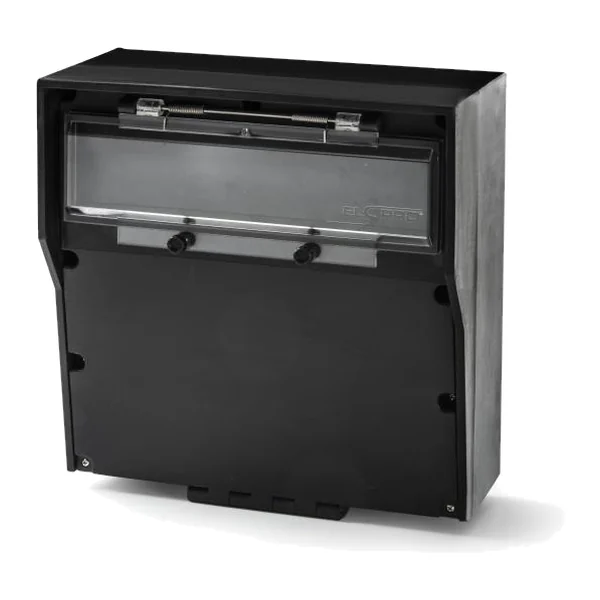

23312.9 — Rubberised enclosure for 18 modules, for 4× Schuko + 1x 5P 125A
Manufacturer: Famatel · Code: 23312.9
Price on request
Delivered to order — lead time confirmed on request
Description
IMPACT rubberized distribution board. 2P+E / 3P+N+E poles, 125 A, protection class IP67, dimensions 380 × 370 × 170 mm (H × W × D), 18 modules, 5 sockets, color: black. Wired board in enclosure 23312; contacts: 4 × Schuko + 1 × 3P+N+E 125 A; 3P+N+E contacts are IP67, 380–440 V.
Technical data
| Section | Industrial socket boards |
|---|---|
| Group | RUBBERISED INDUSTRIAL BOARDS | UNEQUIPPED IP65 - IMPACT |
| Product type | Rubberised board with sockets |
| Number of poles | 3 (2P+E) / 5 (3P+N+E) |
| Current, A | 125 |
| Size | 380 × 370 × 170 mm |
| Degree of protection | IP67 |
| Colour | black |
| Number of modules | 18 |
| Number of sockets | 5 |
| Min. qty | 1 |
| Carton | 1 |
| Tariff code (CN/TARIC) | 8537 10 98 (8537109899) |
| Import duty from third countries | 2,1 % |
