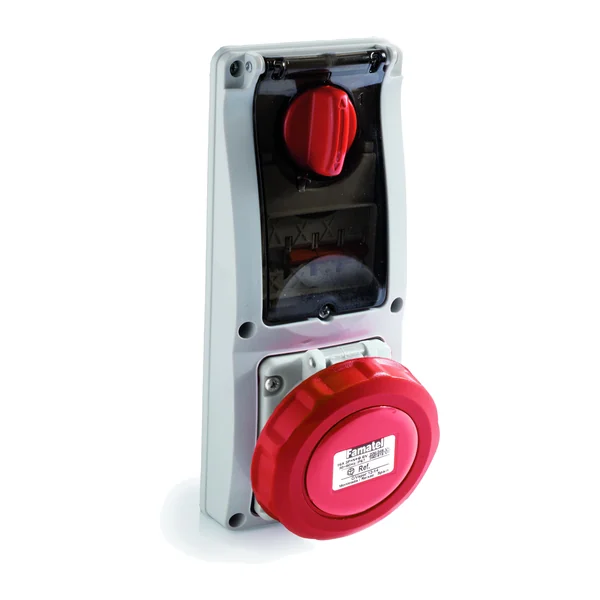

25207 — Interlocked socket, panel-mounted 3P+N+T 400V 63A IP67 - thermal-magnetic circuit breaker
Manufacturer: Famatel · Code: 25207
€189.66 incl. VAT / pc€158.05 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
SpeedPRO built-in socket with circuit breaker. 3P+N+E, 63 A, 400 V~ 50/60 Hz, 6-hour timer, red color. Protection rating IP67; screw terminals with internal hexagon; polyamide PA6 and ABS housing; brass contacts; mechanical locking: when the switch is on, the plug is locked in the socket.
Technical data
| Section | Interlocked industrial sockets |
|---|---|
| Group | SOCKETS WITH THERMAL-MAGNETIC INTERLOCK IP66/67 | 63A – SpeedPRO |
| Product type | Panel-mounted interlocked socket |
| Number of poles | 5 (3P+N+E) |
| Voltage, V | 400 |
| Current, A | 63 |
| Size | 280 × 120 mm (H × W) |
| Degree of protection | IP67 |
| Colour | red |
| Min. qty | 1 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
