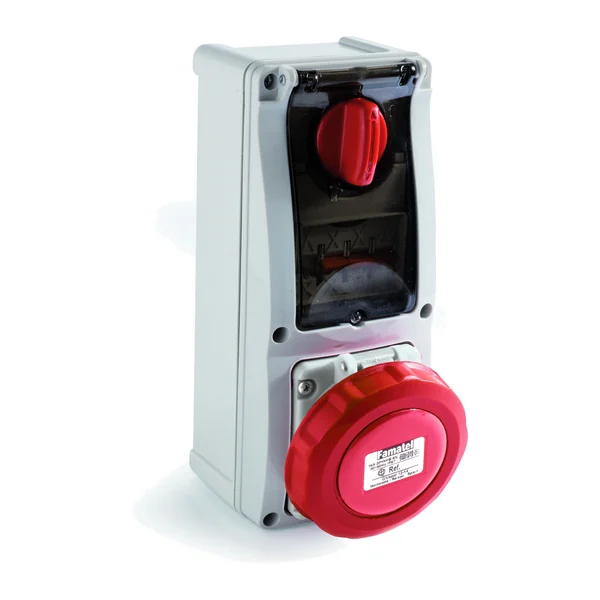

25308 — Interlocked socket, surface-mounted, 2P+T 400V 63A IP67 - thermal-magnetic circuit breaker
Manufacturer: Famatel · Code: 25308
€150.25 incl. VAT / pc€125.21 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
SpeedPRO wall outlet with lock, featuring a circuit breaker. 2P+E, 63 A, 400 V~ 50/60 Hz, with a 9-hour timer. Red color. Protection rating IP67; mechanical lock: when the switch is on, the plug is locked in the outlet; after switching off and removing the plug, the switch is locked.
Technical data
| Section | Interlocked industrial sockets |
|---|---|
| Group | SOCKETS WITH THERMAL-MAGNETIC INTERLOCK IP66/67 | 63A – SpeedPRO |
| Product type | Wall-mounted interlocked socket |
| Number of poles | 3 (2P+E) |
| Voltage, V | 400 |
| Current, A | 63 |
| Size | 280 × 120 mm (H × W) |
| Degree of protection | IP67 |
| Colour | red |
| Min. qty | 1 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
Documents
