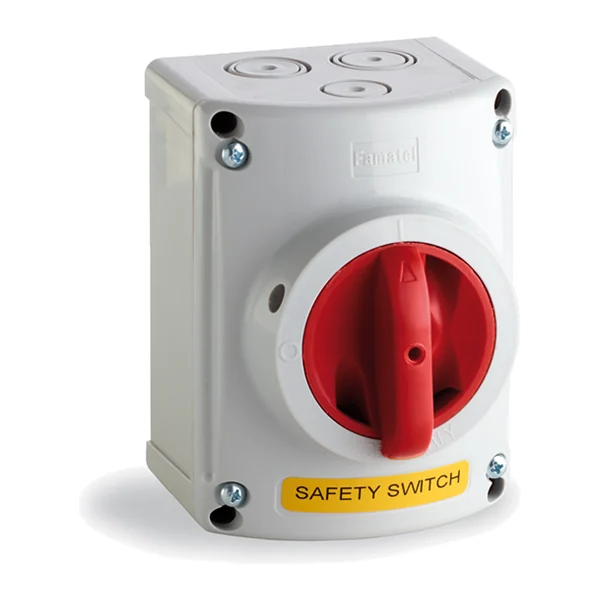

25511 — Switch-disconnector, surface-mounted 2P+NP+E 16A IP67 - solid neutral
Manufacturer: Famatel · Code: 25511
€15.65 incl. VAT / pc€13.04 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
IP67 switch-disconnector. 2P+N+E poles, 16 A, 690 V, protection rating IP67, dimensions 131 × 96.5 × 105.5 mm, color: light gray housing, red handle. Utilization categories at 16 A: AC21A 690 V, AC22A 690 V, AC23A 500 V; the neutral is a fixed connection – it is not interrupted by the switch (Solid Neutral, designation NP).
Technical data
| Section | IP67 industrial switches |
|---|---|
| Group | INDUSTRIAL SWITCHES IP67 16A-40A - with solid neutral |
| Product type | Switch disconnector IP67 |
| Number of poles | 4 (2P+N+E) |
| Voltage, V | 690 |
| Current, A | 16 |
| Size | 131 × 96,5 × 105,5 mm |
| Degree of protection | IP67 |
| Colour | light grey |
| Min. qty | 1 |
| Carton | 40 |
| Tariff code (CN/TARIC) | 8536 50 80 (8536508000) |
| Import duty from third countries | 0 % |
