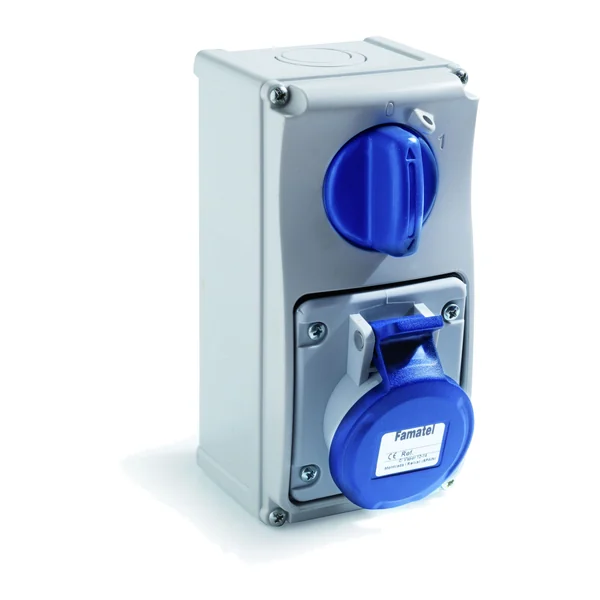

26008 — Interlocked socket, surface-mounted 2P+T 16A 230V IP54 - vertical
Manufacturer: Famatel · Code: 26008
€28.06 incl. VAT / pc€23.38 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
SpeedPRO wall socket with locking mechanism, vertical. 2P+E, 16 A, 230 V~ 50/60 Hz, with a 6-hour timer. Blue color. Protection rating IP54; screw terminals; body made of polyamide PA6 and ABS; brass contacts; mechanical locking: when the switch is turned on, the plug is locked in the socket.
Technical data
| Section | Interlocked industrial sockets |
|---|---|
| Group | INTERLOCKED SOCKETS, SURFACE-MOUNTED IP54 | 16A - 32A – Vertical SpeedPRO |
| Product type | Wall-mounted interlocked socket |
| Number of poles | 3 (2P+E) |
| Voltage, V | 230 |
| Current, A | 16 |
| Size | 180 × 90 × 105 mm |
| Degree of protection | IP54 |
| Colour | blue |
| Min. qty | 1 |
| Carton | 20 |
| Net weight, kg | 0,488 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
Documents
