26310 — Interlocked socket, surface-mounted, 32A 2P+T IP54 230V - DIN rail
Manufacturer: Famatel · Code: 26310
€39.55 incl. VAT / pc€32.96 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description

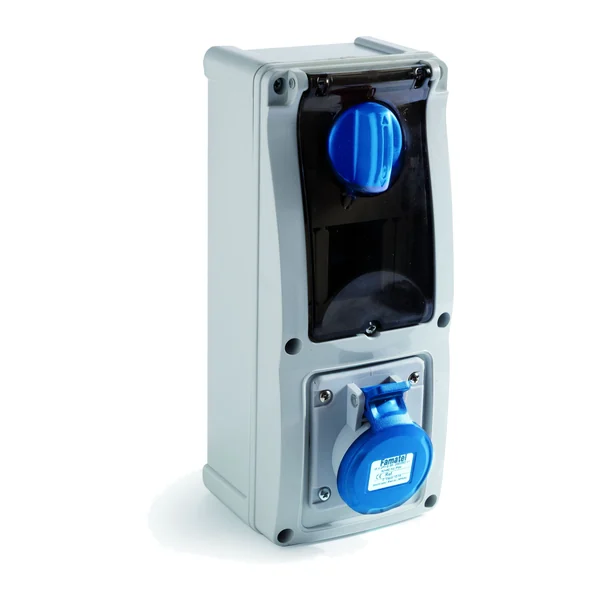

Wall-mounted locking contact, SpeedPRO series, with DIN rail mounting. 2P+E, 32 A, 230 V~ 50/60 Hz, protected contact with a 6-hour timer, blue color. Protection rating IP54; screw terminals; housing made of polyamide PA6 and ABS; brass contacts; DIN rail and window with cover for 4 modules; mechanical locking: when the switch is turned on, the plug is locked in the contact.
Technical data
| Section | Interlocked industrial sockets |
|---|---|
| Group | INTERLOCKED SOCKETS, WITH/WITHOUT EQUIPMENT IP54 | 16A - 32A – SpeedPRO |
| Product type | Wall-mounted interlocked socket |
| Number of poles | 3 (2P+E) |
| Voltage, V | 230 |
| Current, A | 32 |
| Size | 280 × 120 mm (H × W) |
| Degree of protection | IP54 |
| Colour | blue |
| Min. qty | 1 |
| Carton | 10 |
| Tariff code (CN/TARIC) | 8536 69 90 (8536699099) |
| Import duty from third countries | 2,3 % |
