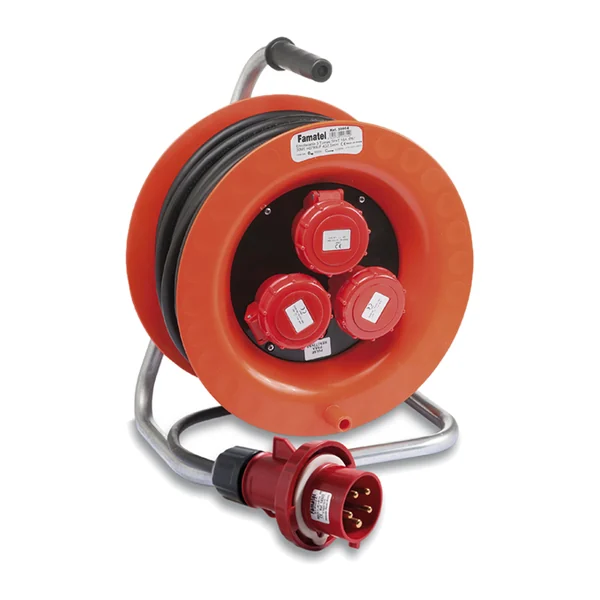

30004 — Cable reel with circuit breaker 16A, input plug 5P 400V IP67/ output 3 sockets 5P 400V IP67/ 30m H07RN-F 5G2.5 mm2 IP55
Manufacturer: Famatel · Code: 30004
€351.92 incl. VAT / pc€293.27 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Cable reel. 3P+E poles, 16 A, 400 V, protection rating IP55, dimensions 400 × 330 × 155 mm (drum ø330 mm), 3 sockets, 30 m cable, power 4500 W, color: orange drum. 30 m H07RN-F 4 × 2.5 mm² cable; inlet: CEE IP67 3P+E 16 A / 380 V; maximum load 4500 W with cable wound and 11000 W with cable unwound.
Technical data
| Section | Industrial cable reels |
|---|---|
| Group | CABLE REELS WITH SOCKETS IP67 |
| Product type | Cable reel |
| Number of poles | 4 (3P+E) |
| Voltage, V | 400 |
| Current, A | 16 |
| Size | 400 × 330 × 155 mm (drum ø330 mm) |
| Degree of protection | IP55 |
| Colour | orange |
| Number of sockets | 3 |
| Cable length, m | 30 |
| Power | 4500 W |
| Min. qty | 1 |
| Carton | 1 (see) |
| Tariff code (CN/TARIC) | 8544 42 90 (8544429090) |
| Import duty from third countries | 3,3 % |
