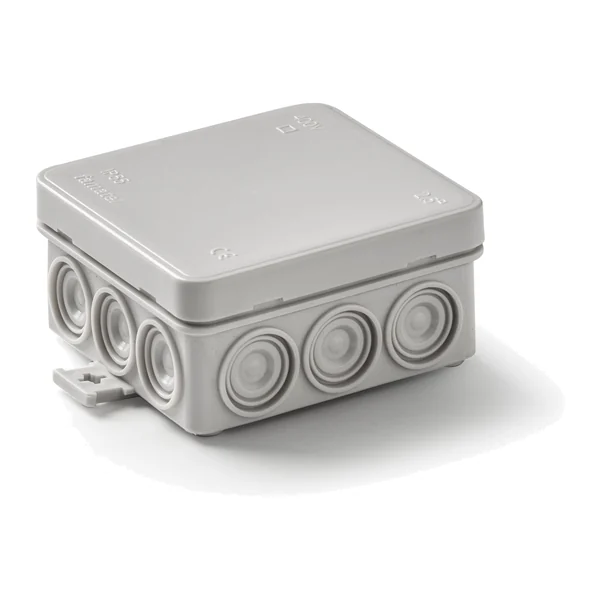

3052 — Weatherproof box IP55 85/85/39, with 12 cable entries

3052 — Weatherproof box IP55 85/85/39, with 12 cable entries

Manufacturer: Famatel · Code: 3052

€0.72 incl. VAT / pc€0.60 excl. VAT

Delivered to order — lead time confirmed on request

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

AcquaBOX distribution box. Protection rating IP55, dimensions 85 × 85 × 39 mm (H × W × D), color: light gray. Cover and base made of PP/PS; protection rating IP55, impact resistance IK08; external mounting lugs; knock-out entries: 3 × ø 8–19 mm from the top, 3 × ø 8–19 mm from the bottom, 2 × (3 × ø 8–19 mm) on the sides – total of 12.

Technical data

SectionJunction boxes
GroupWATERPROOF JUNCTION BOXES IP55/IP65/IP68 - AcquaBOX cable gland
Product typeJunction box
Size85 × 85 × 39 mm
Degree of protectionIP55
Colourlight grey
Min. qty8
Carton224
Net weight, kg0,045
Tariff code (CN/TARIC)3925 90 80 (3925908000)
Import duty from third countries6,5 %
