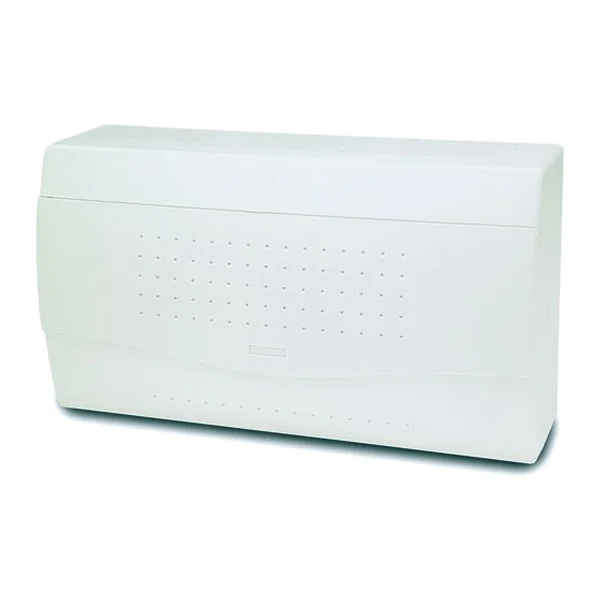

3818 — Enclosure for surface mounting 18 modules, opaque door, IP40
Manufacturer: Famatel · Code: 3818
€14.92 incl. VAT / pc€12.43 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
NUOVA outdoor enclosure. IP40 protection rating, dimensions 195 × 350 × 105 mm (H × W × D), 18 modules, color: white. For outdoor installation; opaque door; 18 DIN modules; impact resistance IK08; with UV protection; halogen-free; can be sealed; removable module carrier (DIN rail) and removable front panel.
Technical data
| Section | Distribution boards |
|---|---|
| Group | DISTRIBUTION BOARDS IP40 - NUOVA series |
| Product type | Surface-mounted board |
| Size | 195 × 350 × 105 mm |
| Degree of protection | IP40 |
| Colour | white |
| Number of modules | 18 |
| Min. qty | 1 |
| Carton | 10 |
| Tariff code (CN/TARIC) | 8538 10 00 (8538100000) |
| Import duty from third countries | 0 % |
