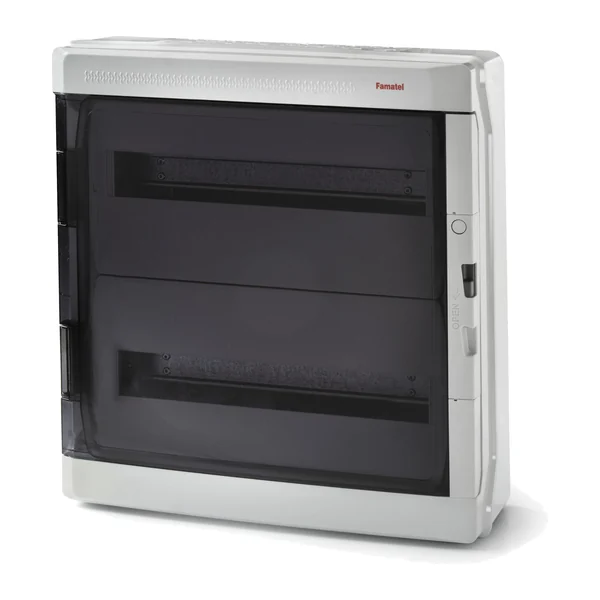

39036 — Enclosure for surface mounting 36 modules, transparent door, IP65
Manufacturer: Famatel · Code: 39036
€138.59 incl. VAT / pc€115.49 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Surface-mounted AcquaPLUS enclosure. Protection rating IP65, dimensions 464 × 430 × 160 mm (H × W × D), 36 modules, color: light gray body, transparent door. Transparent window (door) made of polycarbonate; 36 DIN modules; cable entries at the top and bottom: 2x20; 8x25; 1x35 (as per table); frame and base made of ABS.
Technical data
| Section | Distribution boards |
|---|---|
| Group | DISTRIBUTION BOARDS IP65 - ACQUA series |
| Product type | Surface-mounted board |
| Size | 464 × 430 × 160 mm |
| Degree of protection | IP65 |
| Colour | light grey |
| Number of modules | 36 |
| Min. qty | 1 |
| Carton | 1 |
| Tariff code (CN/TARIC) | 8538 10 00 (8538100000) |
| Import duty from third countries | 0 % |
Documents
