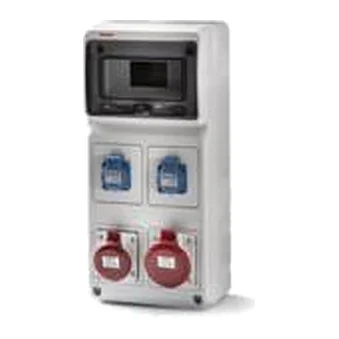

6502 — Enclosure up to 8 modules, with sockets: 2× Schuko + 2×3P 16A, IP54
Manufacturer: Famatel · Code: 6502
€156.59 incl. VAT / pc€130.49 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
AcquaCOMBI industrial distribution board. 2P+E poles, 16 A, 230 V, IP54 protection rating, dimensions 500 × 230 × 155 mm, 8 modules, 4 sockets, color: light gray. Sockets: 2 × 2P+E 16 A 220 V + 2 × Schuko; installed in a 3961 enclosure (8 modules); pre-wired AcquaCOMBI enclosure, equipped with industrial CEE sockets and Schuko sockets.
Technical data
| Section | Industrial socket boards |
|---|---|
| Group | EQUIPPED AND WIRED INDUSTRIAL BOARDS | SOCKETS only - AcquaCOMBI IP54 and IP65 |
| Product type | Industrial board with sockets |
| Number of poles | 3 (2P+E) |
| Voltage, V | 230 |
| Current, A | 16 |
| Size | 500 × 230 × 155 mm |
| Degree of protection | IP54 |
| Colour | light grey |
| Number of modules | 8 |
| Number of sockets | 4 |
| Min. qty | 1 |
| Carton | 1 |
| Tariff code (CN/TARIC) | 8537 10 98 (8537109899) |
| Import duty from third countries | 2,1 % |
